STC-F Chair Stairlift

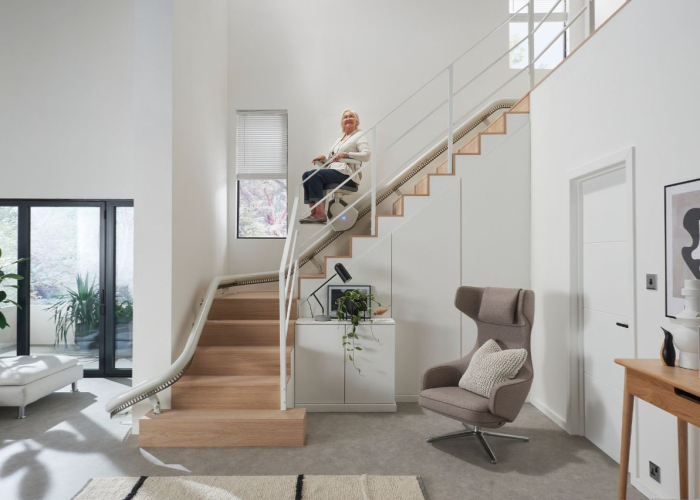

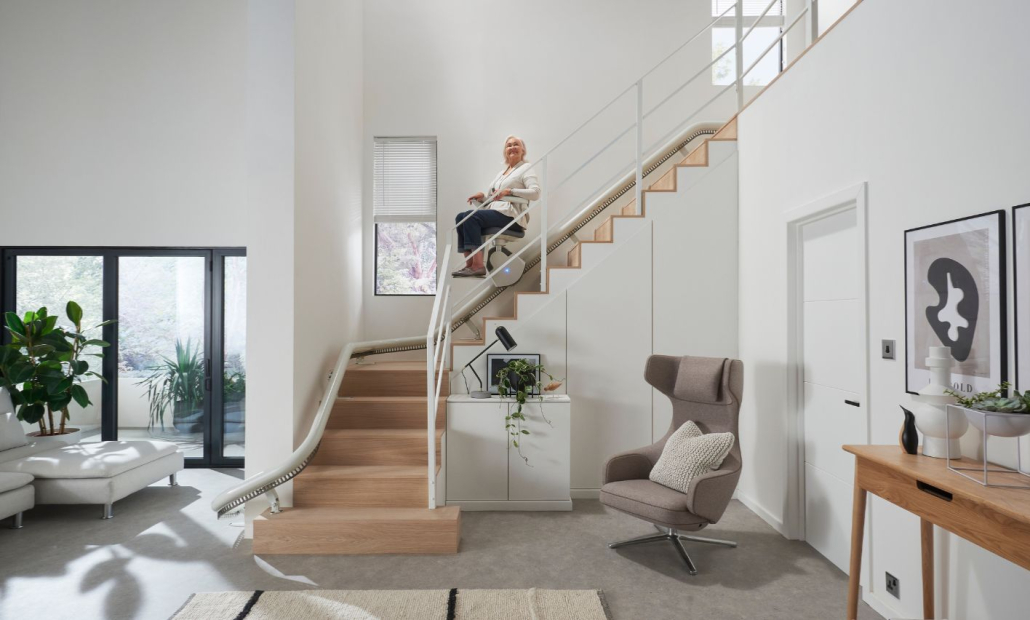

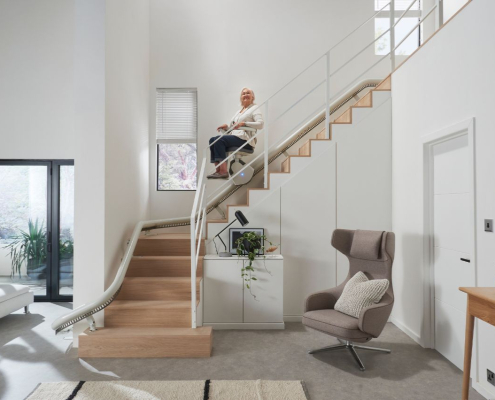

Chair specially designed for very narrow stairs. It can be installed even on stairways that are only 65 cm wide. The STC-F chair stairlift can be fitted to any type of staircase, whether it is straight, curved, or spiral. It’s space-saving design specifically provides those who do not need to use the chair stairlift with plenty of room to get by.

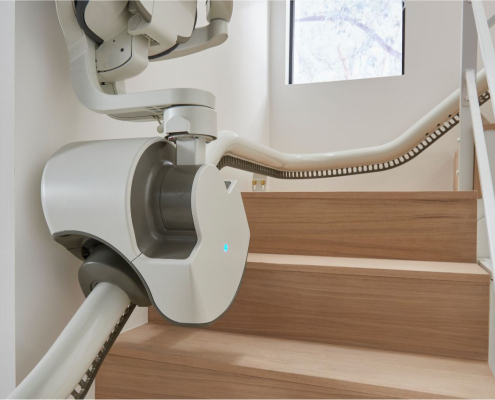

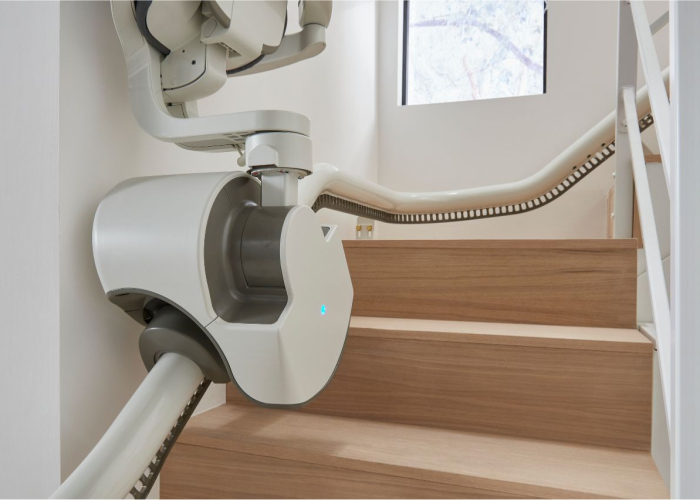

The STC-F model chair stairlift makes it possible to install a curved section of rail at the top or bottom of the stairs. This means the chair, when not in use, can be parked where it will not be in the way.

Download manual in PDF format

STC-F Chair Stairlift

Chair specially designed for very narrow stairs. It can be installed even on stairways that are only 65 cm wide. The STC-F chair stairlift can be fitted to any type of staircase, whether it is straight, curved, or spiral. It’s space-saving design specifically provides those who do not need to use the chair stairlift with plenty of room to get by.

The STC-F model chair stairlift makes it possible to install a curved section of rail at the top or bottom of the stairs. This means the chair, when not in use, can be parked where it will not be in the way.

Download manual in PDF format

More information

Ease of use

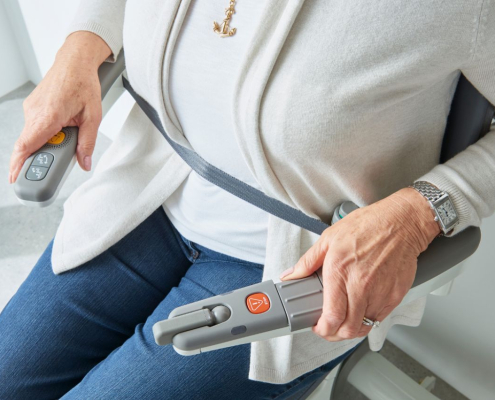

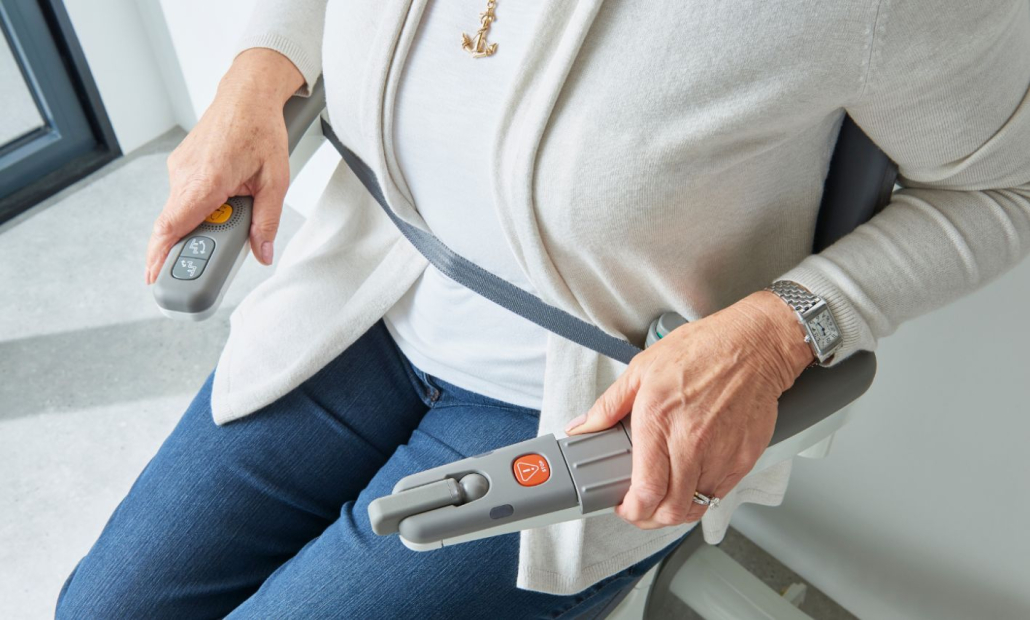

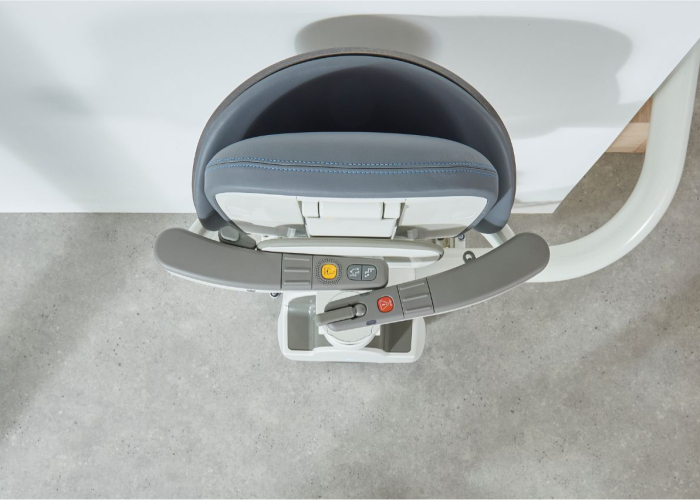

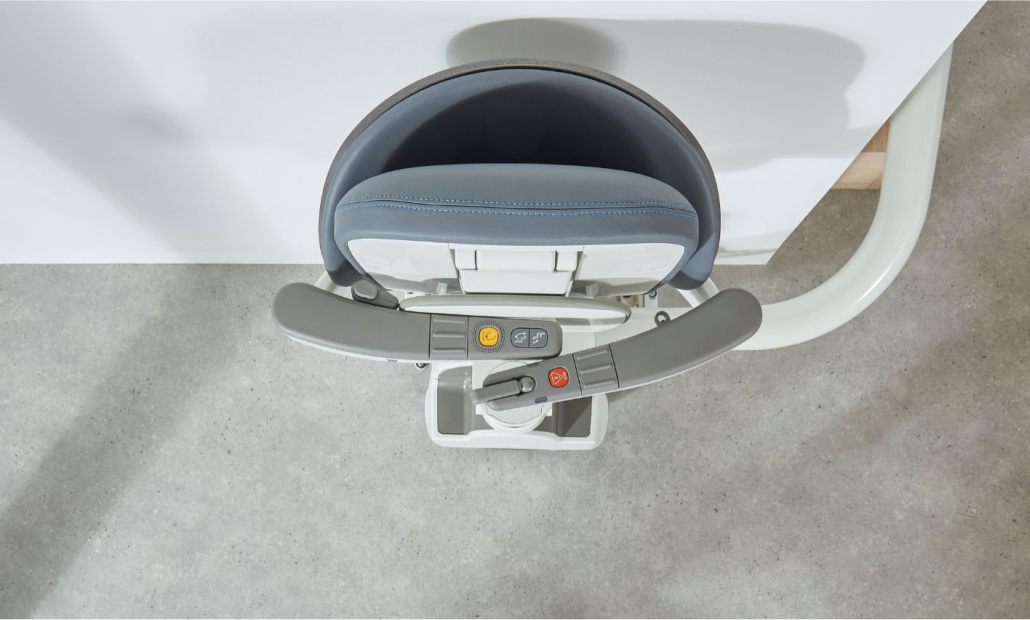

The STC-F chair stairlift features an easy-to-use joystick as a control unit which also serves as a key. The joystick responds to very slight pressure. Pushing it in the direction you wish to move, the chair will move up or down. This model provides a customized solution to meet the needs of each and every person: the armrest control unit is supplied standard with 3 types of joysticks, and, optionally, an ergonomic control is also available.

Dimensions of the STC-F Stairlift

CHARACTERISTICS	VALUES
Minimum width of the stairs:	765-720 mm interior 745-705 mm exterior
Space occupied by the guide at the top of the stairs:	200 mm
Space occupied by the guide at the bottom of the stairs:	180 mm
Space occupied by the folded seat:	340 mm
Height from the top of the chair to the floor:	955 mm
Space occupied by the unfolded seat, measured from the wall:	750 mm

Characteristics

STANDARD CHARACTERISTICS OF THE STC-F CHAIR STAIRLIFT

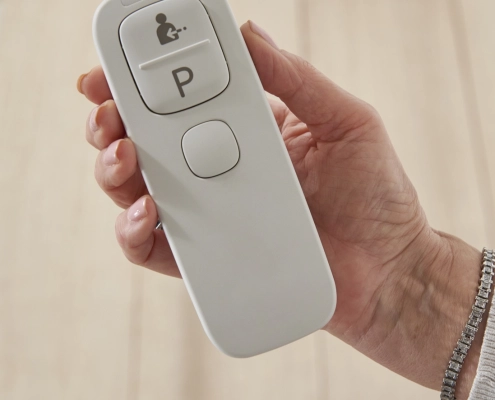

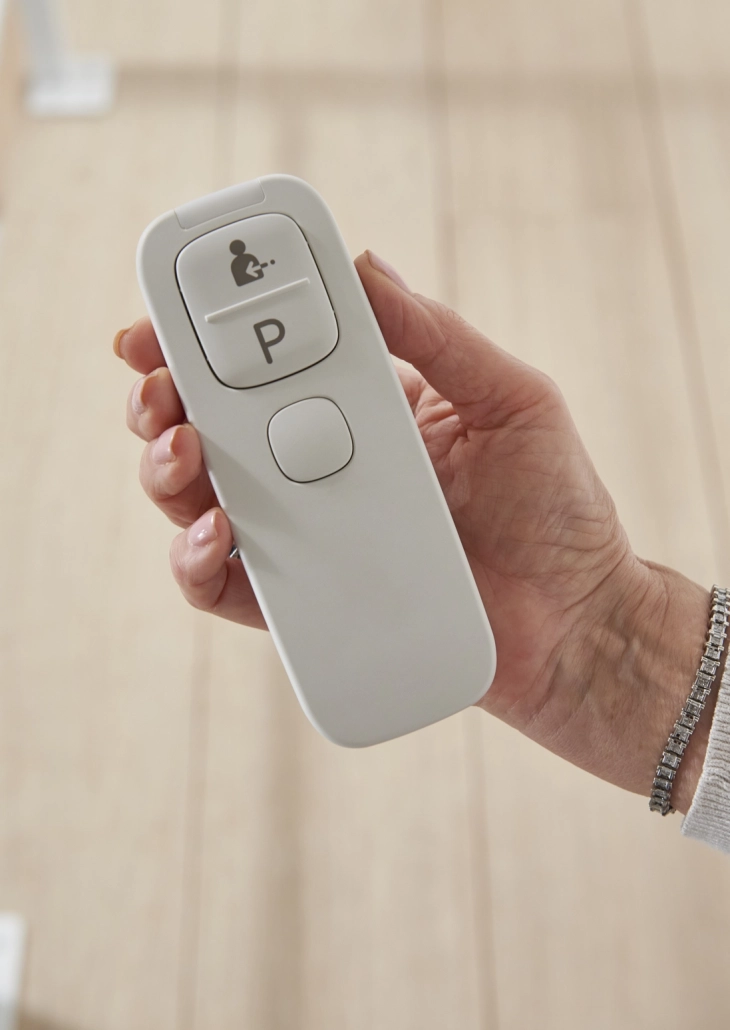

Wireless controls to call the stairlift from each floor

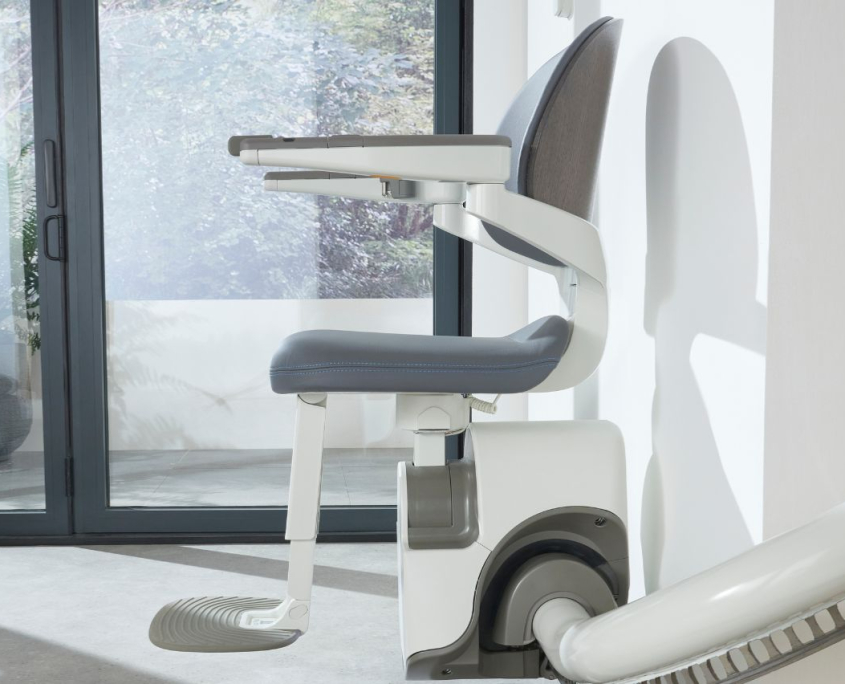

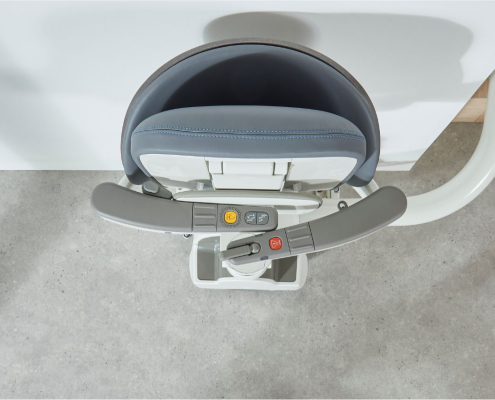

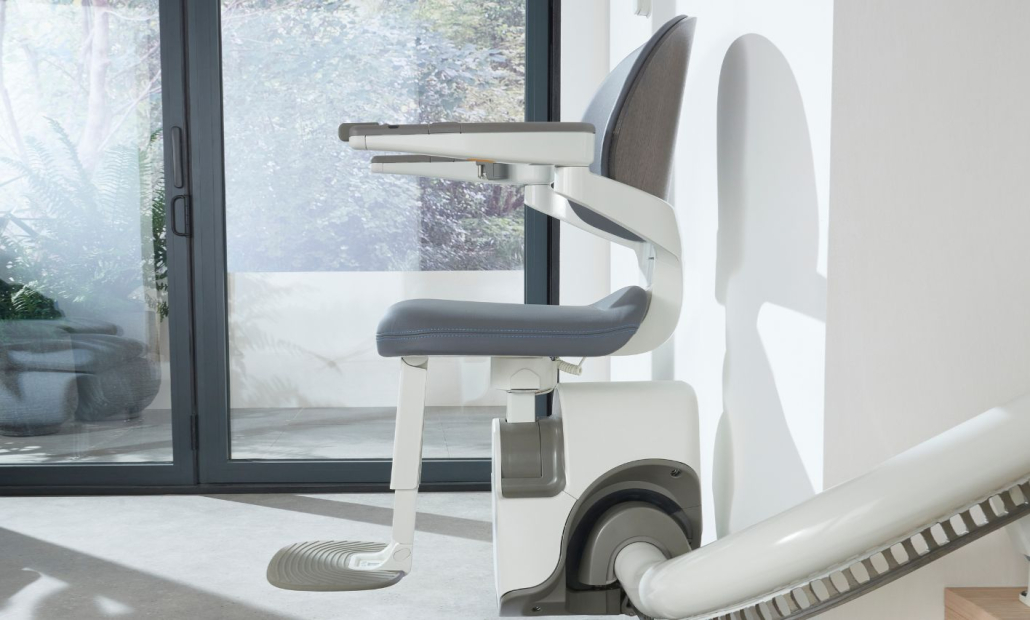

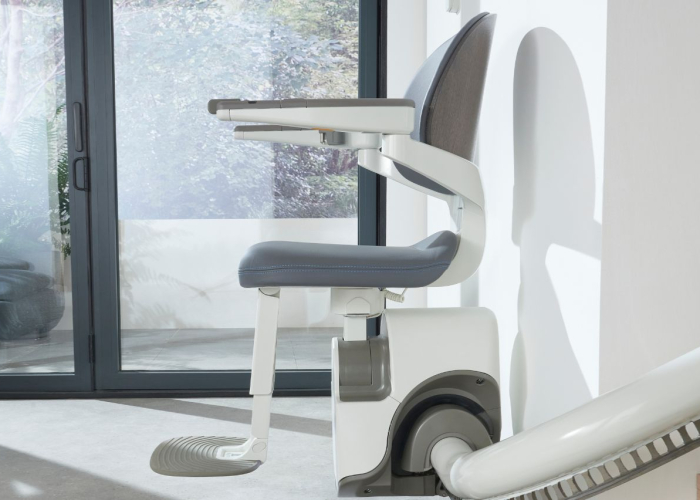

Foldable armrests, footrests and seat
Curved armrests designed to increase the feeling of safety
The chair stairlift may be installed on either side of the stairs

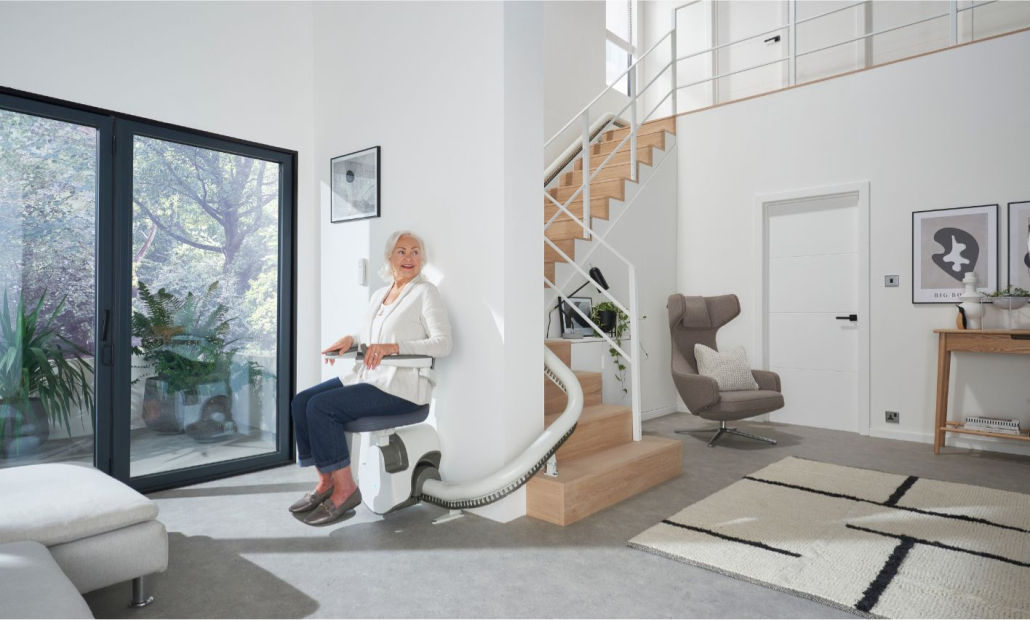

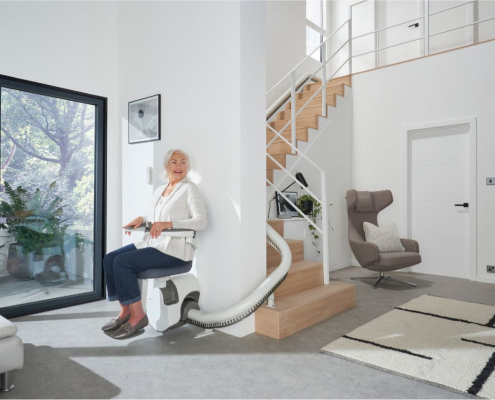

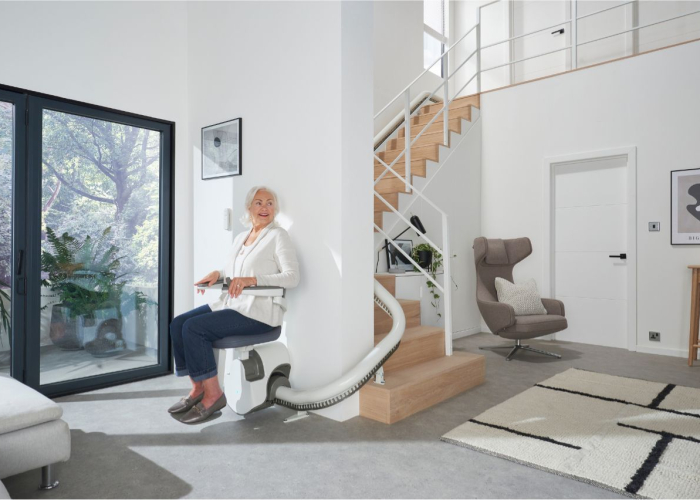

Curves to facilitate parking on each floor
Additional parking points to allow more room for «freedom of movement» on the staircase
Automatic swivel of chair (only when stopped)

Technical document

CHARACTERISTICS	VALUES
Load capacity	125 kg

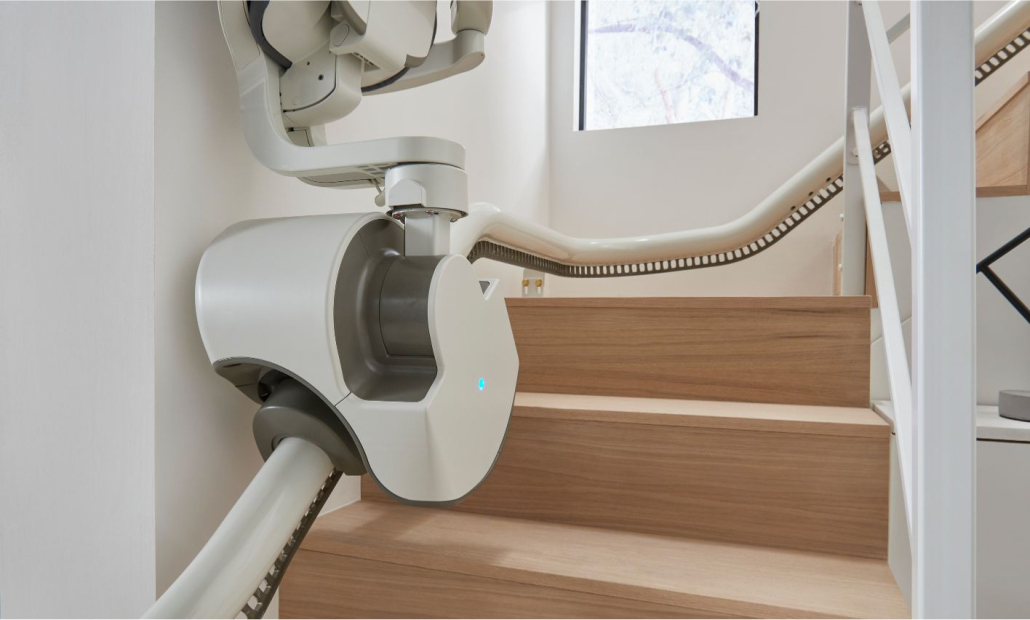

Sistema de tracción	Rack and Pinion, battery operated (24 V)
Rail	One single steel tube, 8 cm in diameter
Slope	-70 º a 70 º
Speed	Variable, up to max. of 0.15 m/s
Regulation	Homologación CE
