Small heights model EVP-L

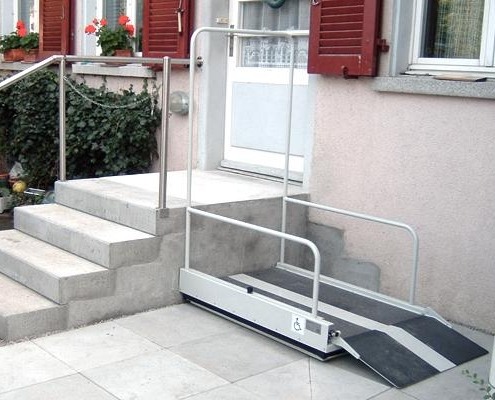

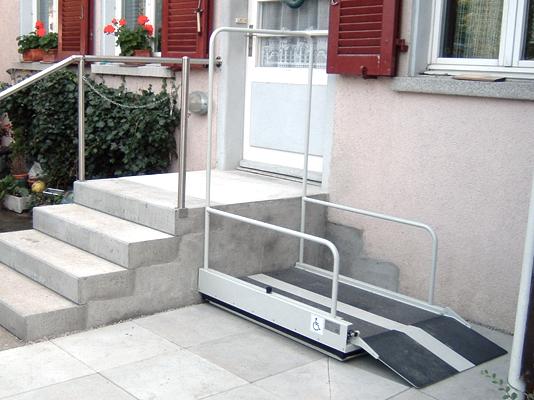

Platform moves easily, thanks to its reduced weight. Wheels may be attached so as to allow for movement with minimal effort.

We are proud to introduce the EVP-L platform lift. This vertical platform lift needs no installation and is transportable. This lift for disabled persons is recommended for those cases in which:

Stairs are too high or too long.
Lifts are not practical because the difference in height is too small.

Download manual in PDF format

Platform moves easily, thanks to its reduced weight. Wheels may be attached so as to allow for movement with minimal effort.

We are proud to introduce the EVP-L platform lift. This vertical platform lift needs no installation and is transportable. This lift for disabled persons is recommended for those cases in which:

Stairs are too high or too long.
Lifts are not practical because the difference in height is too small.

Download manual in PDF format

More information

EVP-L Vertical Platform Lift

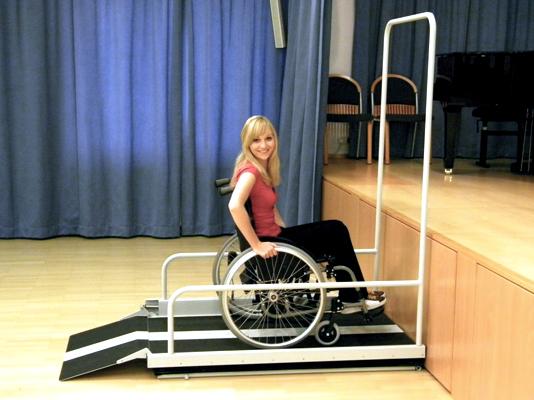

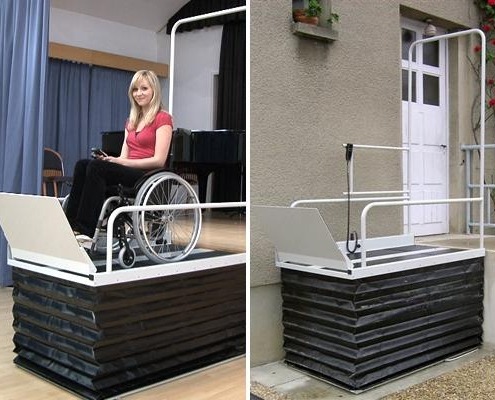

With the aid of our EVP-L lift, people who use wheelchairs and people who are physically disabled can overcome heights of up to 83 cm. The EVP-L platform lift has been designed for indoor and outdoor use.

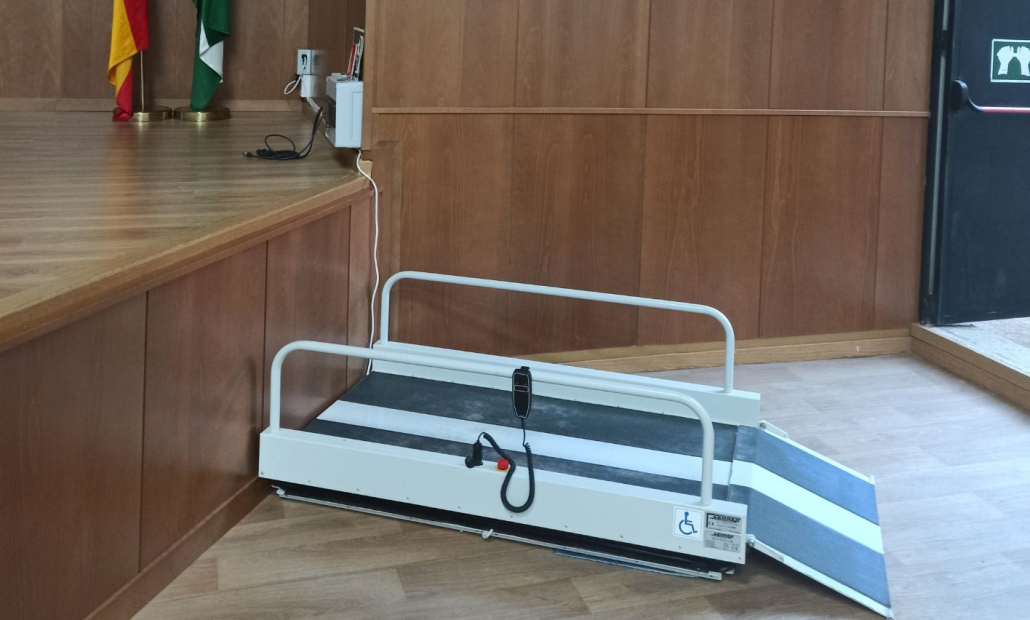

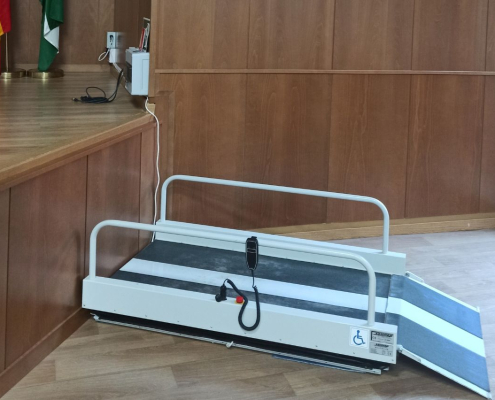

Because the lift is relatively light, at only 52.5 kg, it can be easily moved. The platform lift is controlled by a control connected by a spiral cable that can be easily anchored to the railings. It is equipped with a 24 Volt motor, connected to a transformer which, in turn, is plugged into any regular outlet in your home.

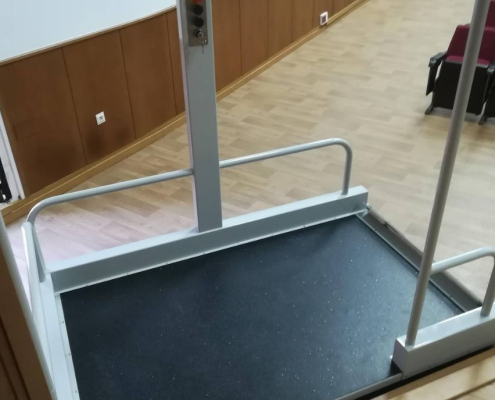

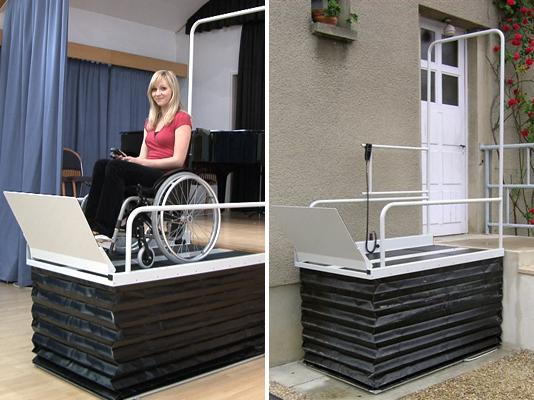

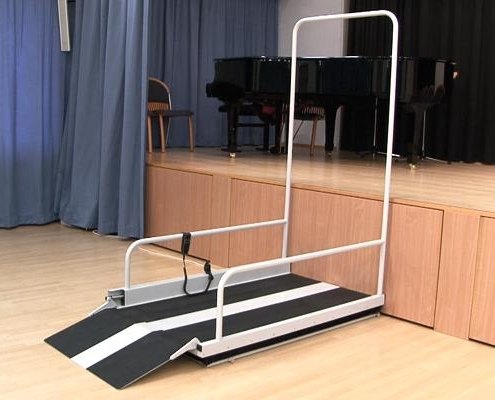

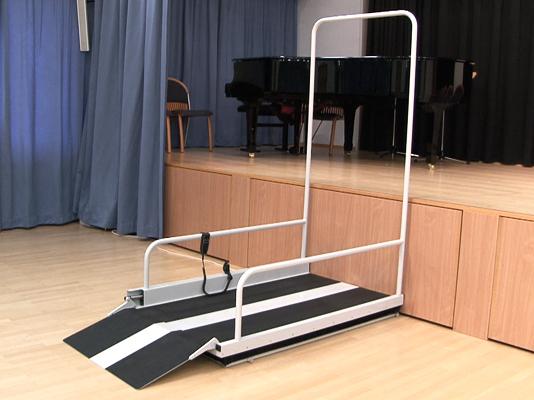

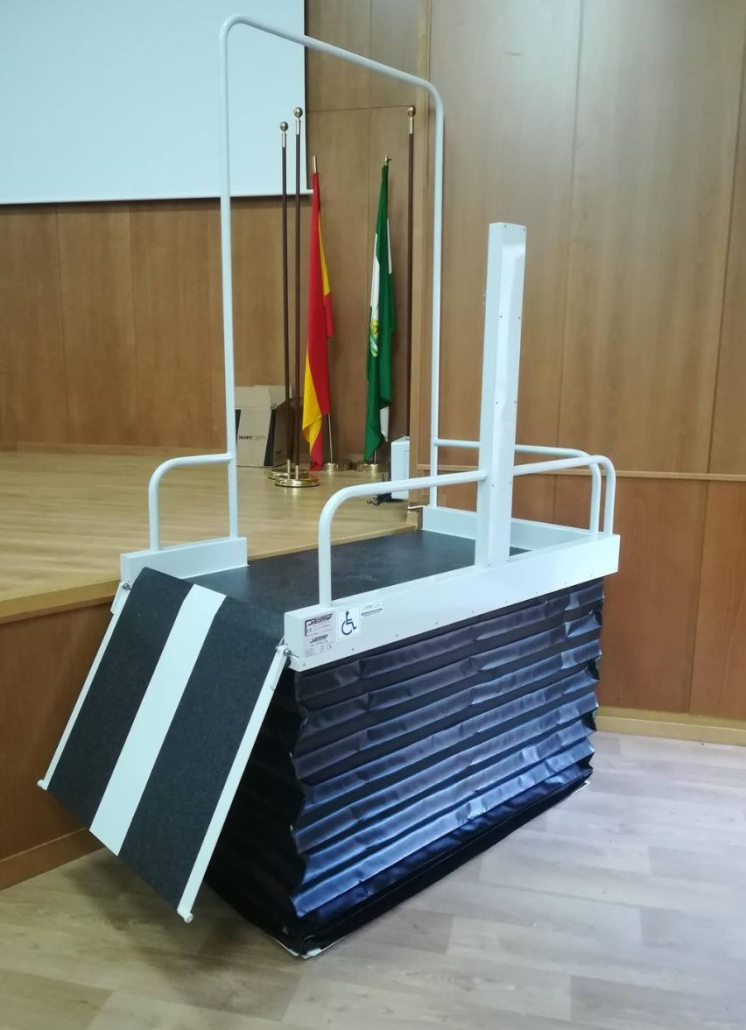

The EVP-L lift’s manual ramp guarantees easy access to the platform lift. When the control knob is held down, the automatic ramp raises and lowers. In its folded position, the ramp serves as a safety barrier. The EVP-L lift is equipped with an accordion-like sheath that covers the 4 sides of the lift when it is raised, thereby protecting people below from possible injury while the lift travels up and down.

In addition, this vertical platform lift is equipped with a rail that serves as protection at the upper stopping point. The EVP-L lift can be configured to stop at the desired height. The platform lift and access ramp are both covered with a non-skid material.

Equipment

Technical document EVP-L vertical platform lift

CHARACTERISTICS	UNITS	EVP-L1	EVP-L2
Maximum elevation	mm	595	830
Load capacity	kg	180	180
Speed	mm/s	10	10
Minimum height	mm/s	100	120
Energy required	V	24	24
Internal length	mm	1170	1495
Width	mm	710	785
External length	mm	1180	1180
External width	mm	810	890

Small heights model EVP-L

EVP-L Vertical Platform Lift

Technical document EVP-L vertical platform lift
