Small heights model EVP-S11
Small heights model EVP-S11

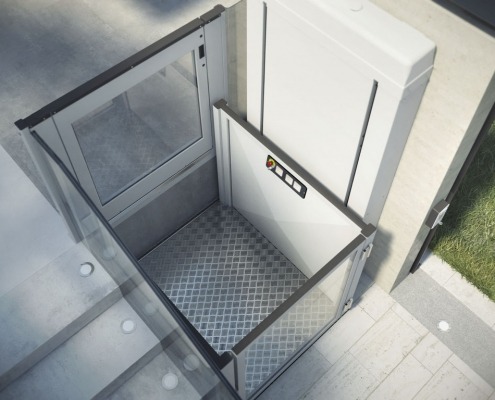

The vertical lift EVP-S11 is a pitless lift with an access ramp if required.
It can be installed both inside a building and OUTSIDE, in a free space, in a building site shaft or in a shaft with steel protections. It loads a maximum of 400 kg and complies with all the regulations required by the EEC.
The vertical lift EVP-S11 is a pitless lift with an access ramp if required.
It can be installed both inside a building and OUTSIDE, in a free space, in a building site shaft or in a shaft with steel protections. It loads a maximum of 400 kg and complies with all the regulations required by the EEC.
Features
The EVP-S11 is a vertical lifting platform designed to overcome height differences of up to 2,990 mm, available in five travel heights: 1,100, 1,600, 2,100, 2,600, and 2,990 mm. It is intended to improve accessibility for people with reduced mobility, including wheelchair users, for both indoor and outdoor installations.
The unit does not require a pit thanks to the integrated access ramp on the platform. If the ramp is not supplied, the required pit depth is a maximum of 165 mm, minimizing the need for construction work.
The EVP-S11 can be installed in three configurations: free-standing, masonry shaft, or shaft with steel/aluminium enclosure. It features a robust construction, with smoked polycarbonate panels and stainless steel options for demanding environments.
