Small heights model EVP-R
Small heights model EVP-R
The EVP-R model lift for small heights can cover heights up to a maximum of 3 meters.

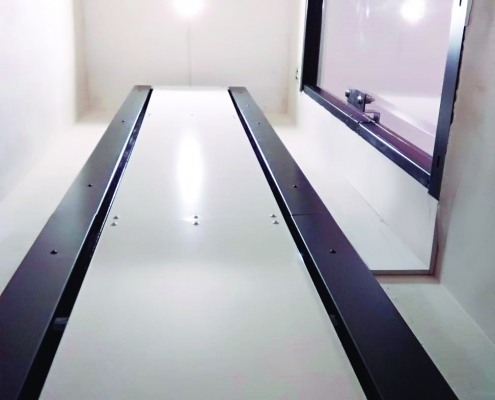

It glides vertically using tracks located in a structure containing all the components, and movement is driven by a hydraulic cylinder system.
The EVP-R model lift for small heights can cover heights up to a maximum of 3 meters.
It glides vertically using tracks located in a structure containing all the components, and movement is driven by a hydraulic cylinder system.
Features

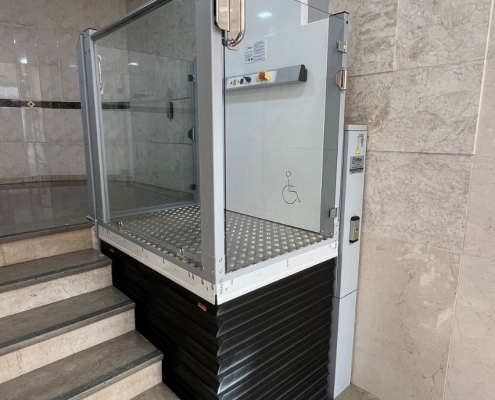

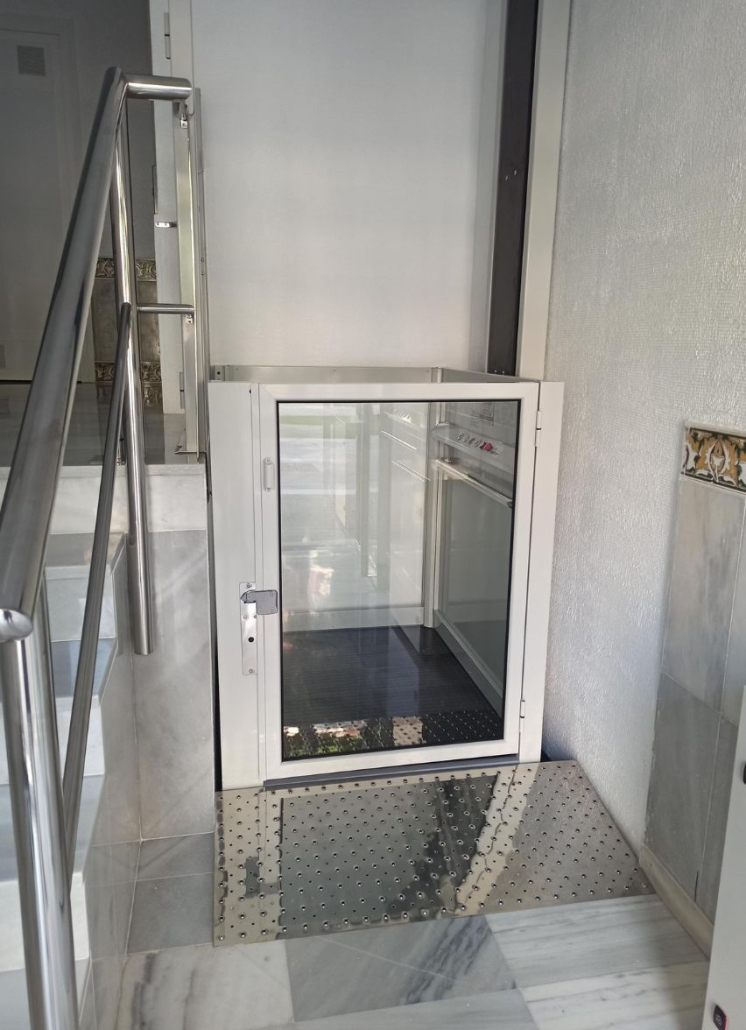

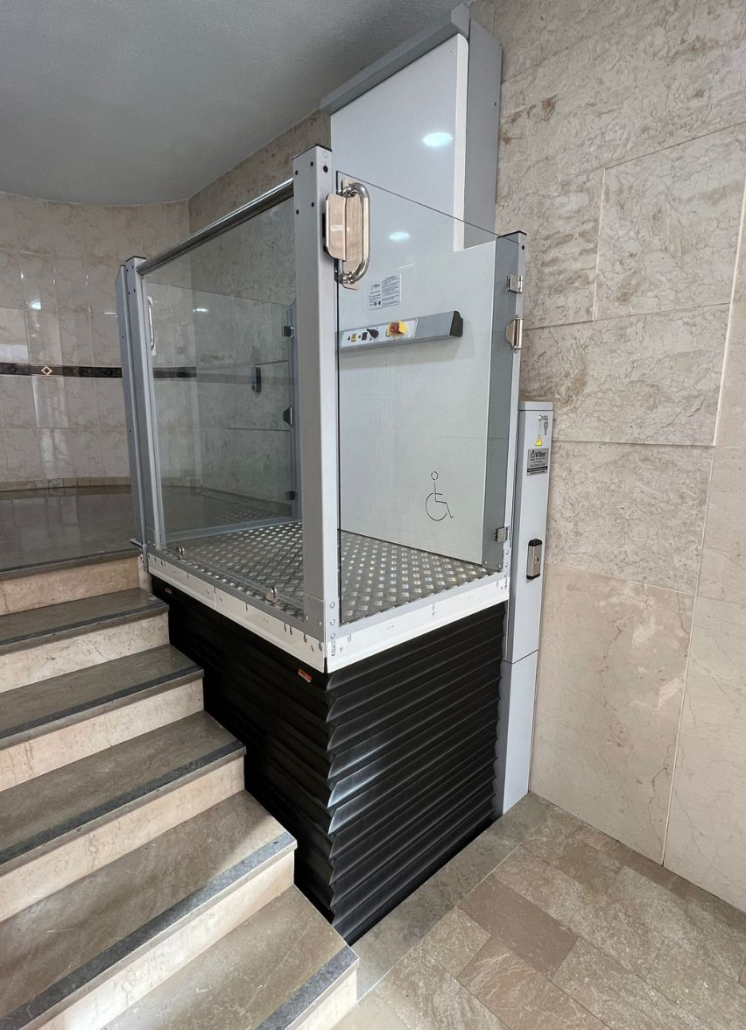

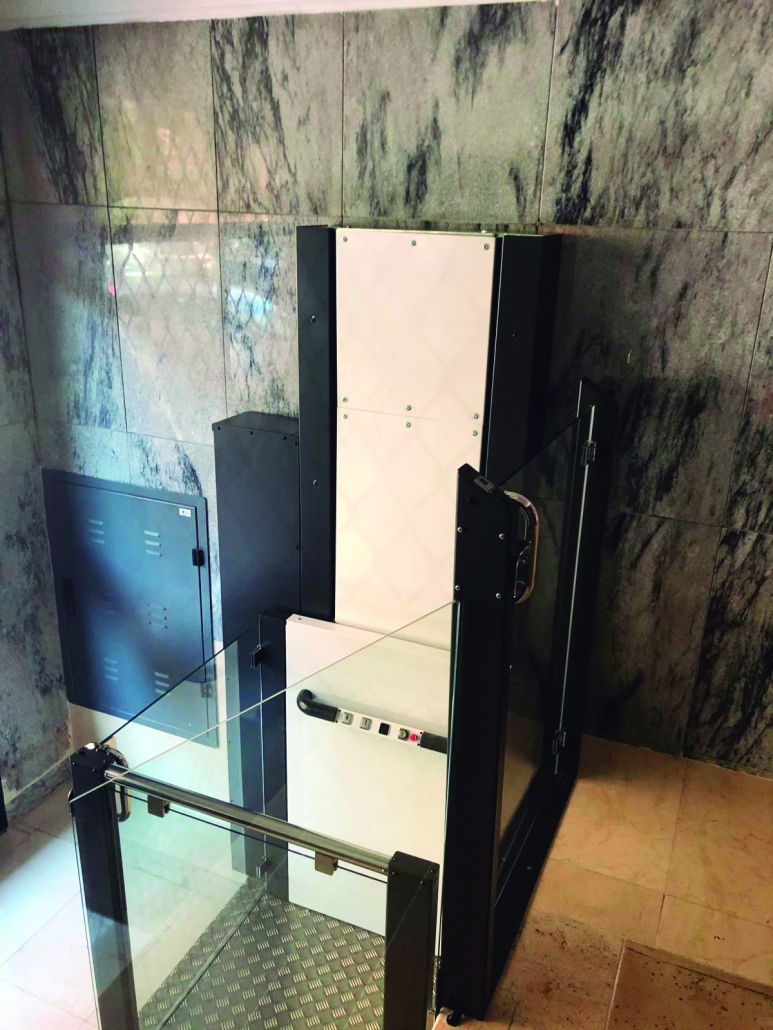

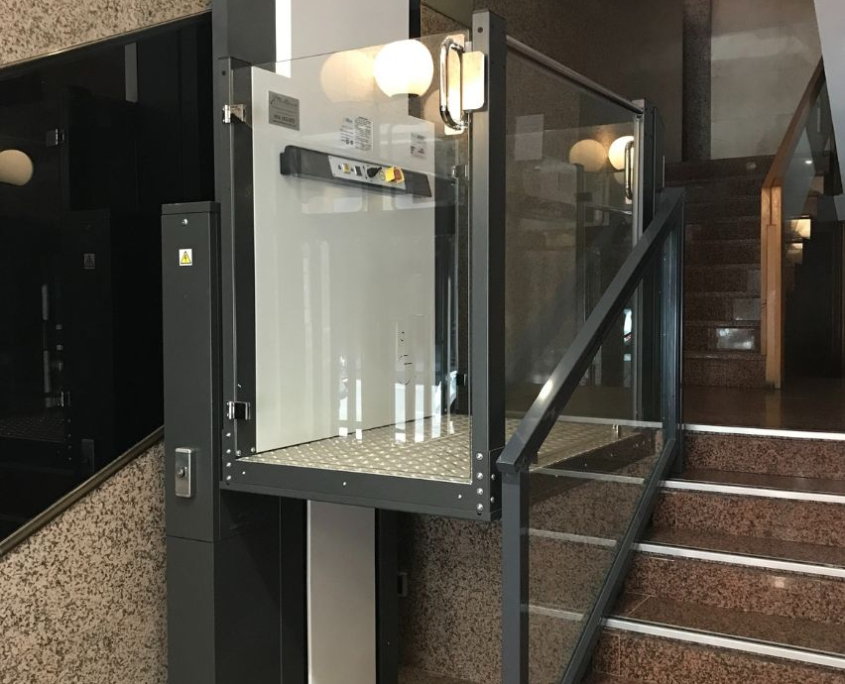

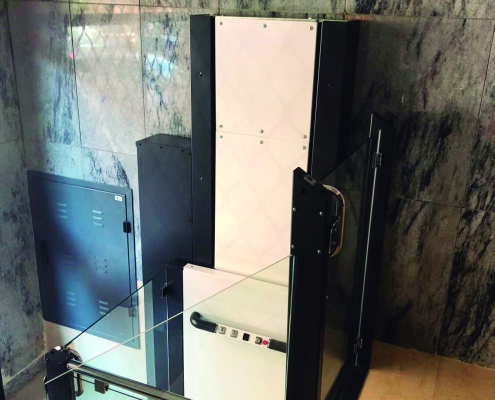

The EVP-R is a vertical lifting platform designed to improve accessibility in residential and public buildings, allowing height differences of up to 3,000 mm to be overcome. It is intended for transporting people with reduced mobility, including wheelchair users.
The traction system is based on 1:1 suspension using a hydraulic cylinder: a single-acting cylinder for travels of up to 1.5 m, and a two-stage telescopic cylinder for travels of up to 3.0 m. The column structure is made of galvanised metal profiles, with dedicated guide rails that ensure precise guidance and compliance with EN 81-20 regulations.

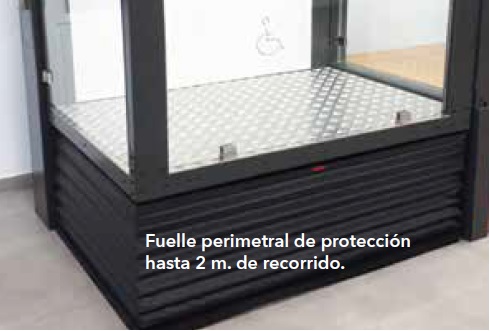

The EVP-R features full perimeter enclosures with protective screens, self-supporting framed doors, and a robust design focused on safe and stable operation.
