Small Heights Model EVP-E

Small Heights Model EVP-E

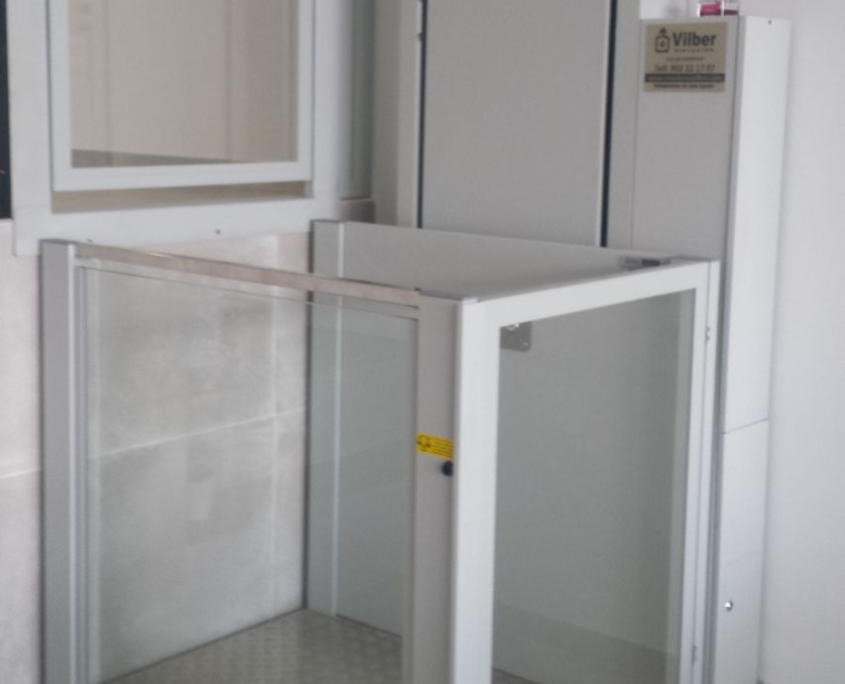

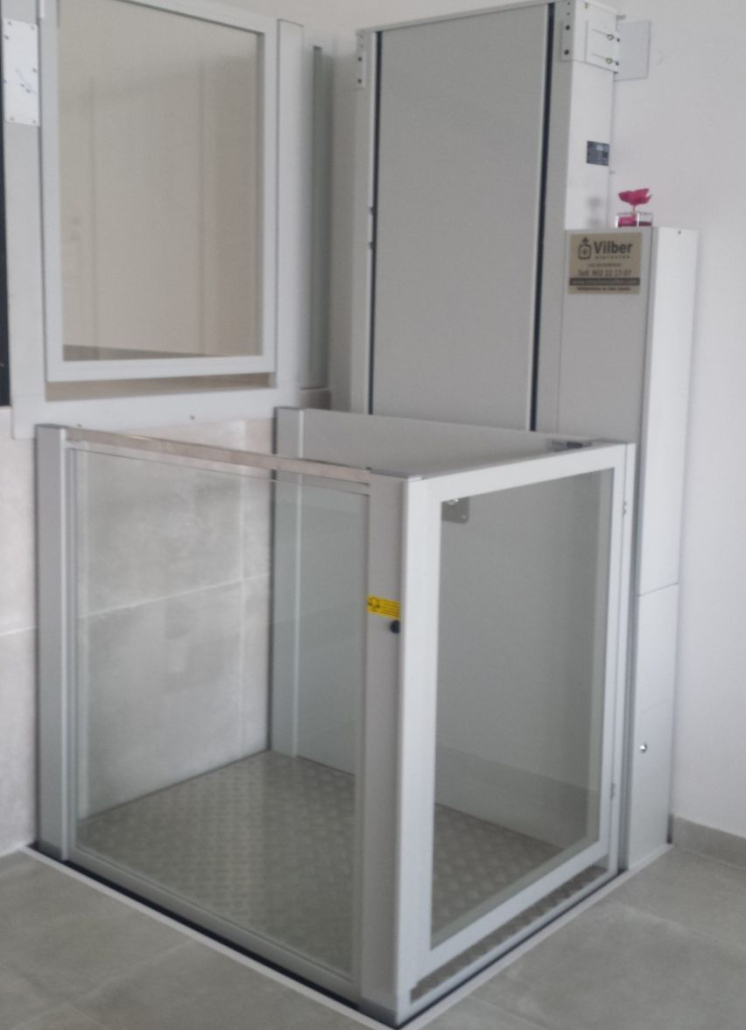

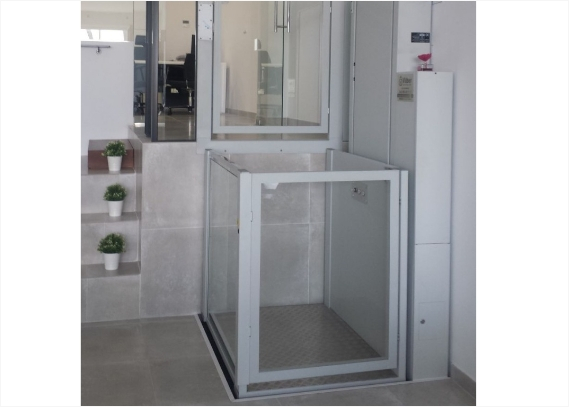

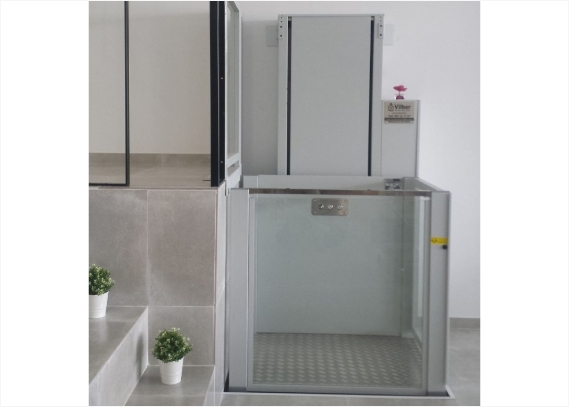

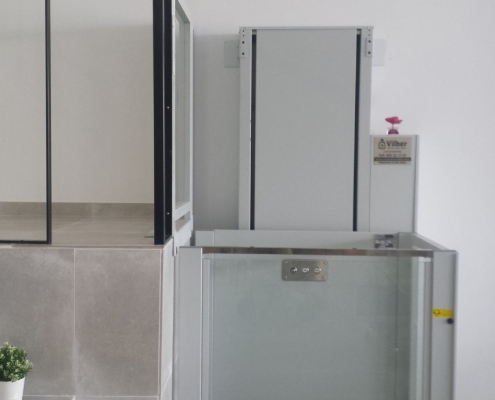

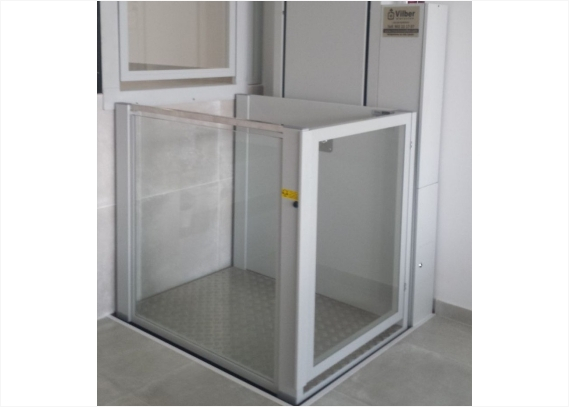

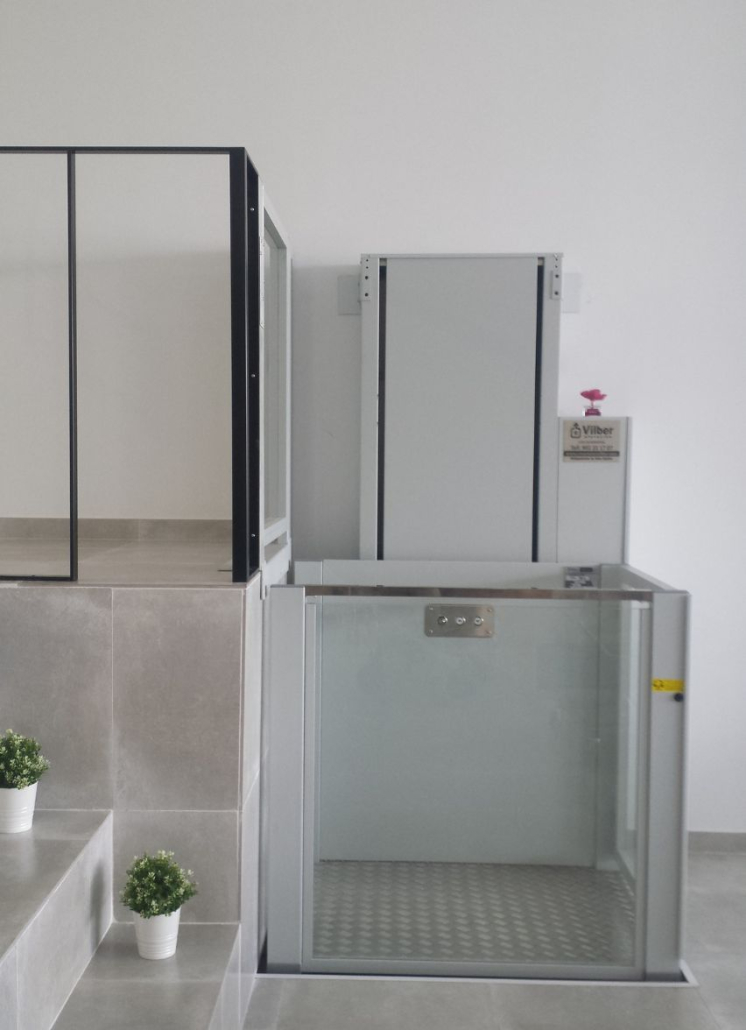

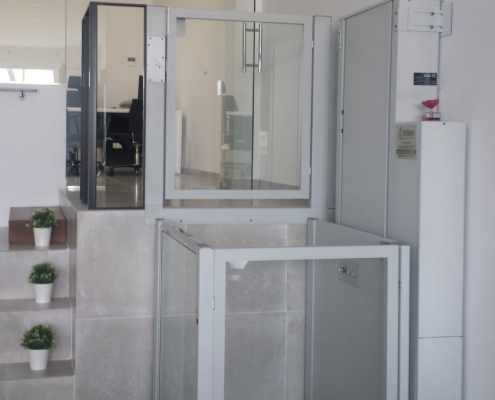

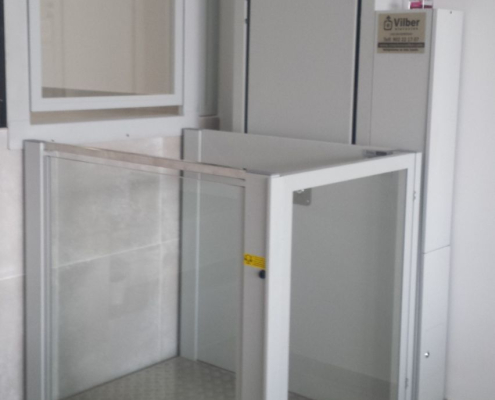

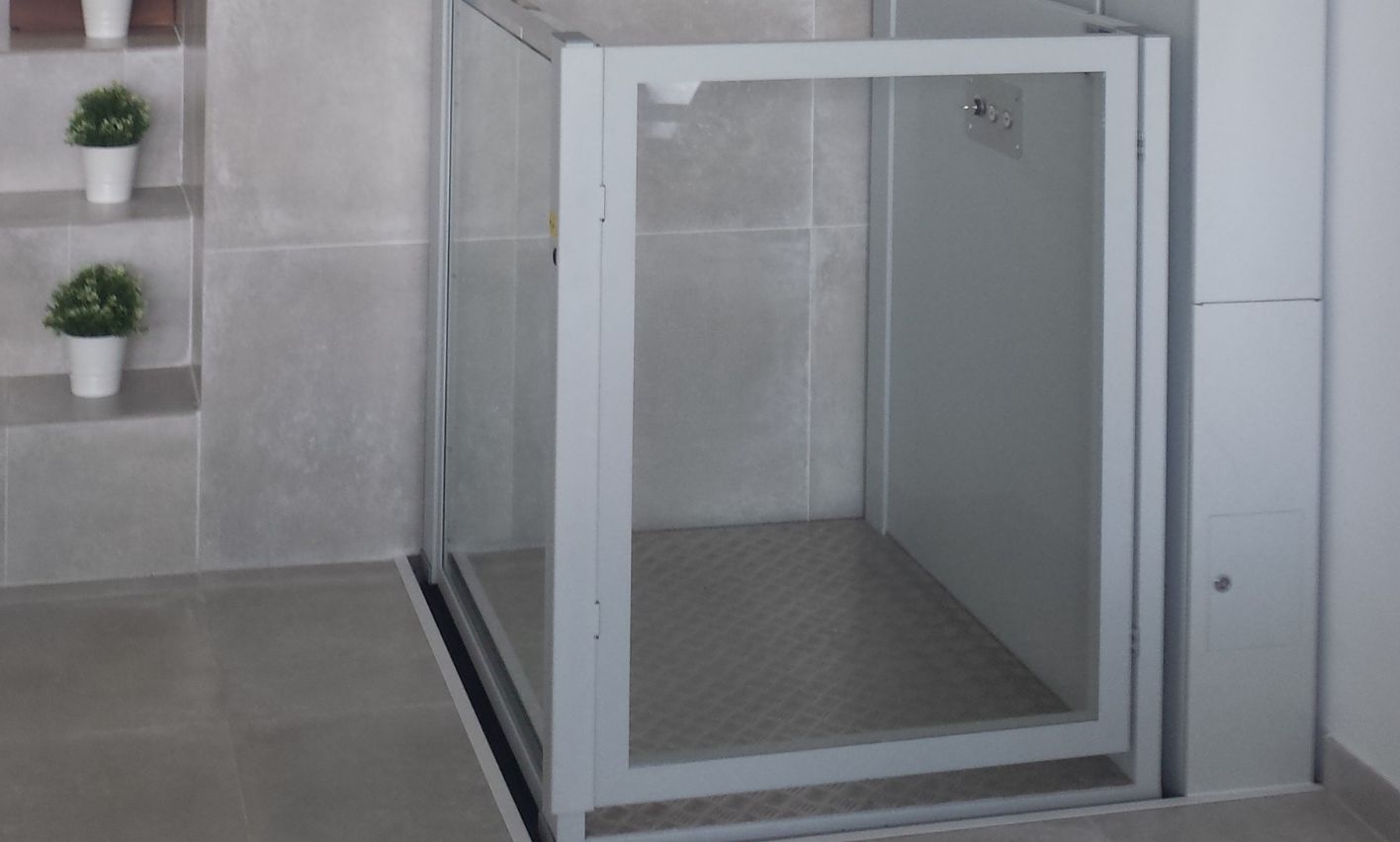

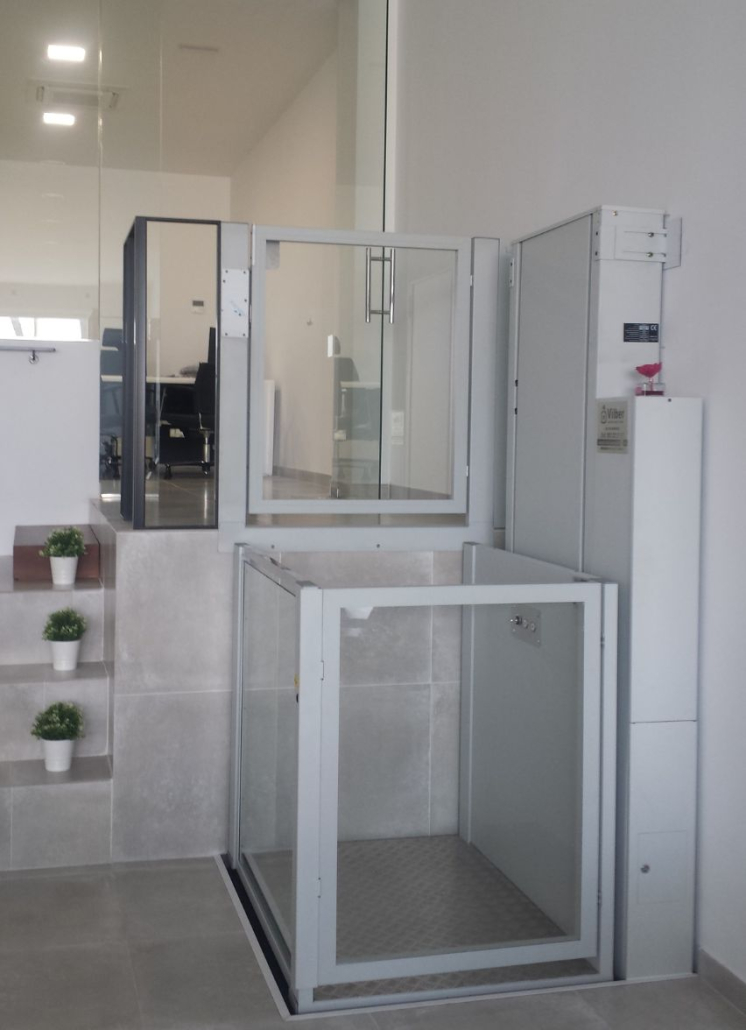

The EVP-E Mini Elevator is the perfect solution for overcoming height differences in residential and commercial buildings. Specifically designed for wheelchair users, this vertical lift offers an exceptional combination of quality, safety, and energy efficiency. Manufactured in Spain under the strictest quality standards, it is ideal for residential communities, offices, restaurants, and any public space requiring improved accessibility.

More info

Available in three versions depending on the required lift height:
- EVP-E 1500: Up to 1,500 mm lift height.
- EVP-E 2000: Up to 2,000 mm lift height.
- EVP-E 3000: Up to 3,000 mm lift height.
Flexible Dimensions:

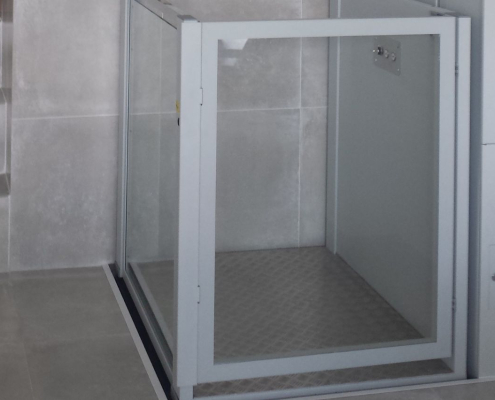

- Adjustable platform dimensions to meet various needs:
  800 x 1250 mm, 900 x 1400 mm, or 1100 x 1400 mm.
- Reduced pit depth starting from 80 mm, perfect for installations in limited spaces.
Advanced Safety:

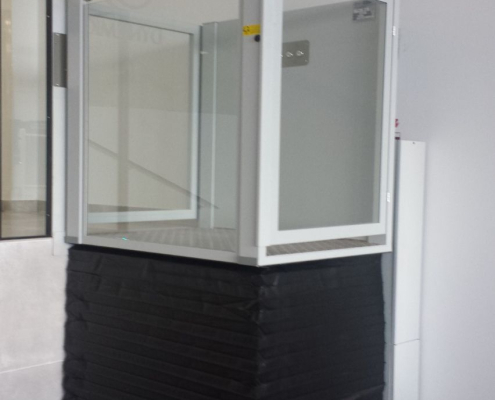

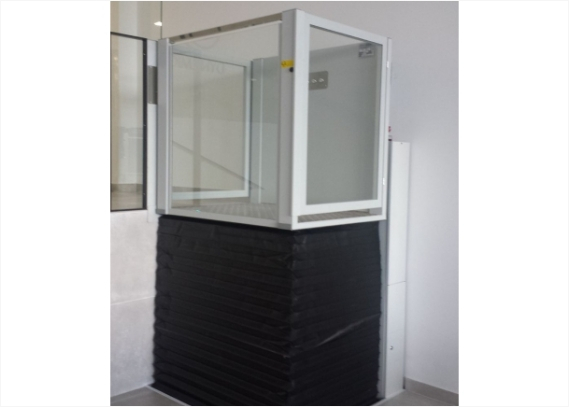

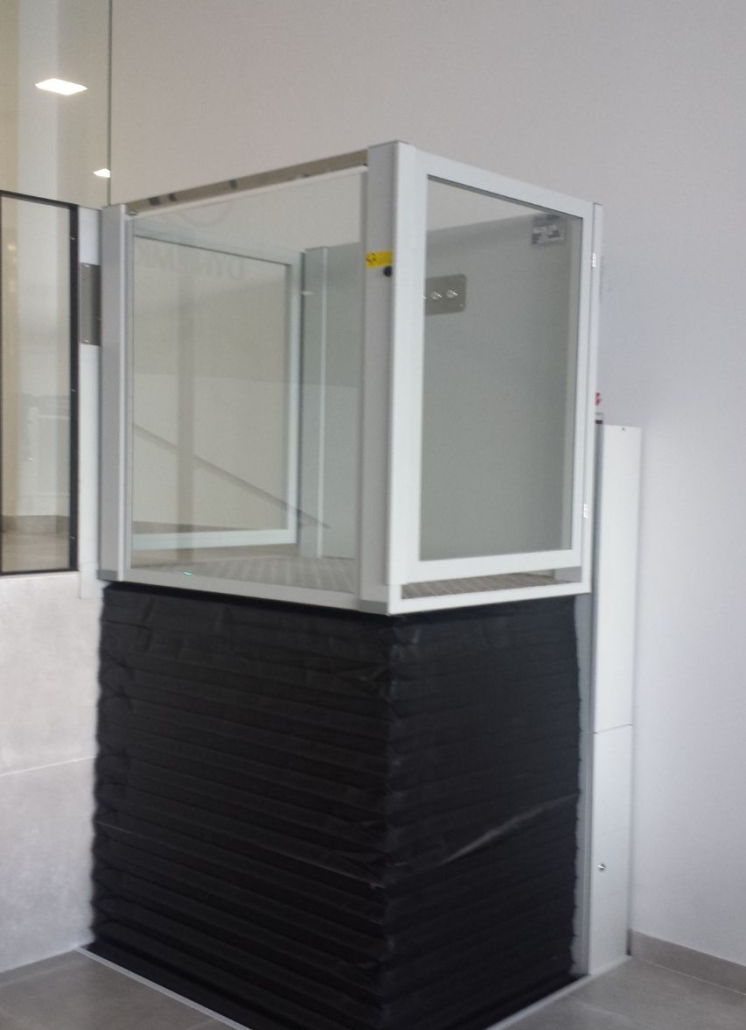

- Perimeter bellows to prevent crushing risks.
- Safety locks with triangular key emergency rescue.
- Manual emergency lowering and built-in safety parachute system.
Energy Efficiency:
- Single-phase power supply (230 V).
- V.F. control system for optimized consumption.
Ease of Use and Maintenance:
- Configurable access points at 90º or 180º.
- Constant-pressure controls on both stops and the platform.
- Rail-based sliding system for easy maintenance access.
Modern Design:
- Finished in light gray RAL 9002, ideal for seamless integration into any setting.
Specifications:
- Maximum speed: 0.15 m/s.
- Load capacity: Up to 385 kg.
- Movement system: Hydraulic with a cylinder.
- Maximum lift height: 3,000 mm.

Small Heights Model EVP-E

Related products

Small Heights Model EVP-R

Small Heights Model EVP-1

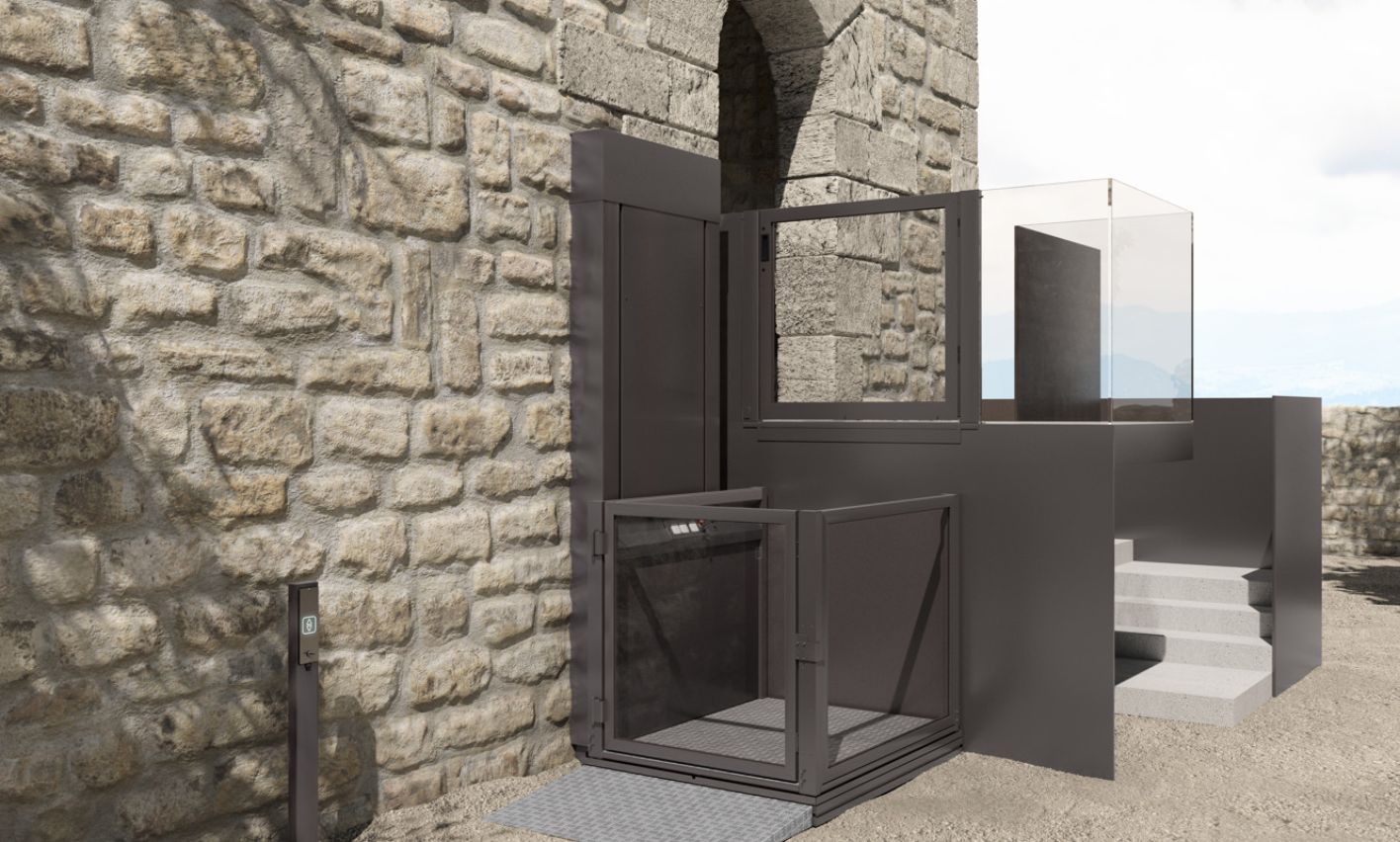

Small Heights Model EVP-L
