Small heights model EVP-1
Small heights model EVP-1
Overcomes architectural barriers by moving vertically up to 3.0 meters high and carrying a maximum load of 300 kg.

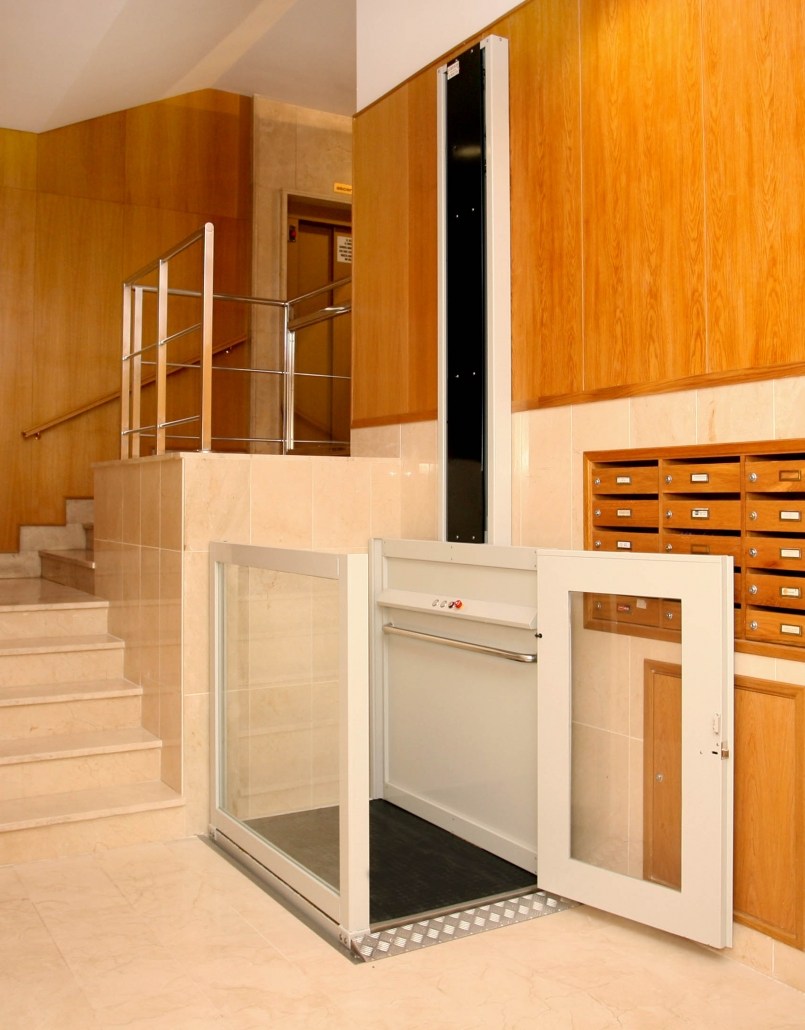

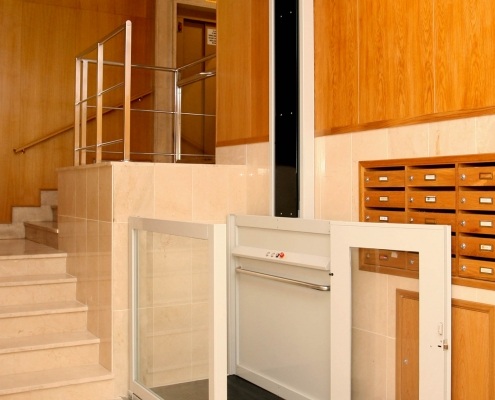

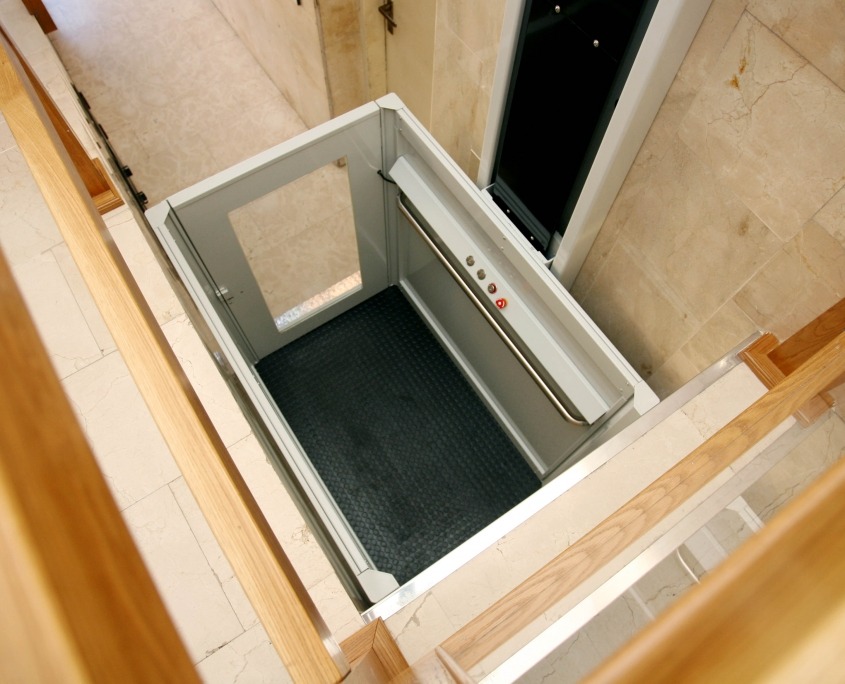

The EVP-1 vertical platform lift is a stairlift designed to help people with reduced mobility to overcome architectural barriers such as stairs. Thanks to this platform lift, a person can go up and down stairs by himself or herself, unassisted.
Overcomes architectural barriers by moving vertically up to 3.0 meters high and carrying a maximum load of 300 kg.
The EVP-1 vertical platform lift is a stairlift designed to help people with reduced mobility to overcome architectural barriers such as stairs. Thanks to this platform lift, a person can go up and down stairs by himself or herself, unassisted.
TECHNICAL DATA
- Load: up to 300 kg
- Speed: 0.10 m/sec.
- Number of stops: two
- Covers heights up to a maximum of 3.0 meters
- Dimensions: 1,200 x 950 mm.
- Three-phase motor, 1 hp (750 W), single phase motor, 1.5 hp (1,125 W).
- The device will only operate when the button is pressed.
- Automatic re-levelling.
- Emergency rescue in descent enabled by cutting off electrical supply.
- Well 80 mm.
- Anti-crushing device under the cabin.
CHARACTERISTICS:
- Drive system
- Progressive start-up and stop
- Manual descent button
- Cabin equipped with latch key
- Palm button used for stopping
- Luminous green activation indicator
- Up and down button
- Platform provided with an enclosure of tube and metal plating at a height of 1.4 meters.
- Stainless steel handrail
- No-Skid chequered aluminium plate floor
