PETC-65 Platform Stairlift

It adapts to staircases with curves or changes in slope, allowing the freedom to move up and down any type of stairs. For indoors or outdoors.

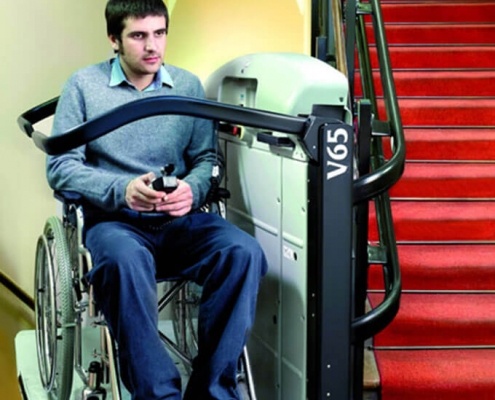

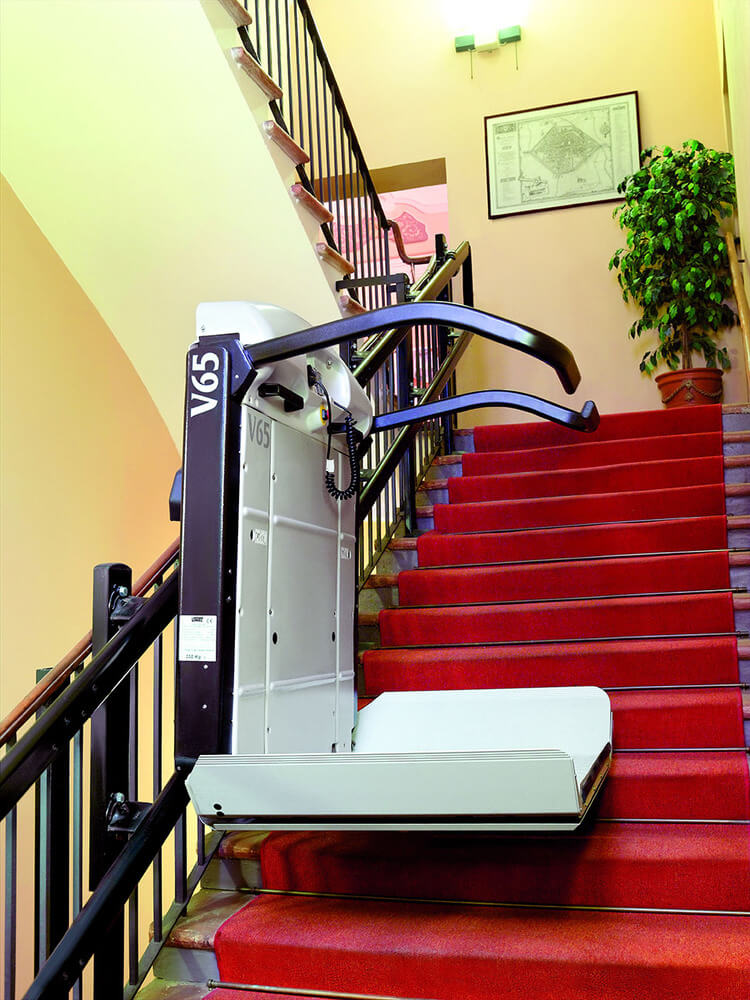

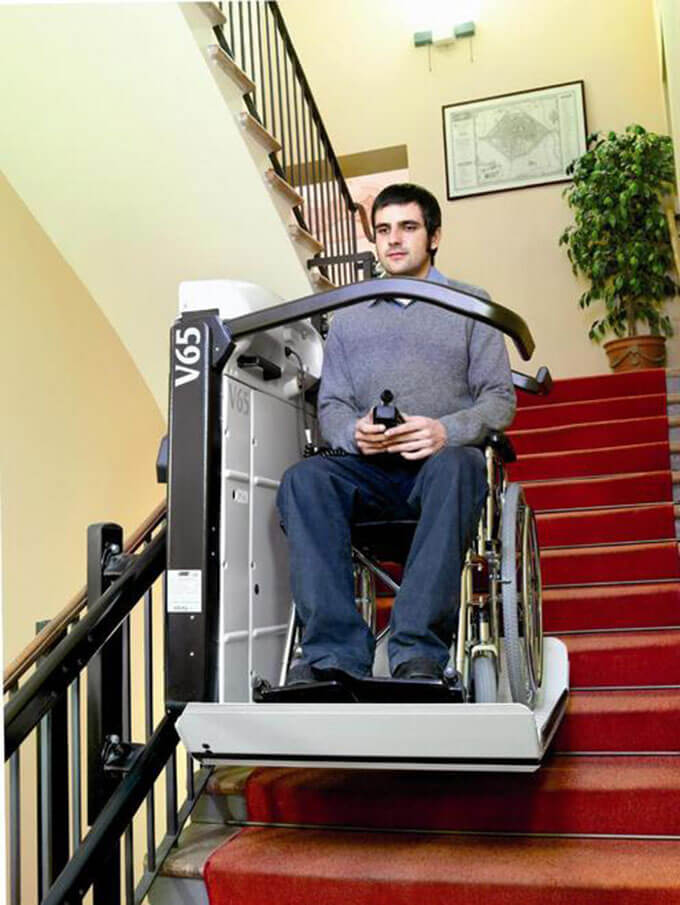

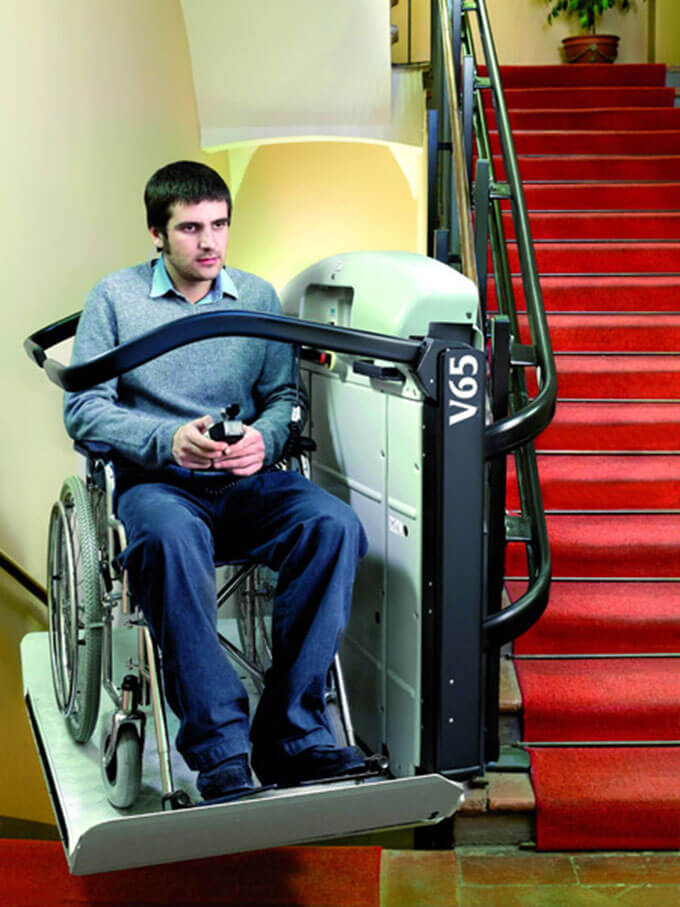

The Creaciones Vilber PTC-65 platform lift is the ideal solution which guarantees that persons who get about in wheelchairs have accessibility to any type of building with staircases featuring curves or changes in slope.

Download manual in PDF format

It adapts to staircases with curves or changes in slope, allowing the freedom to move up and down any type of stairs. For indoors or outdoors.

The Creaciones Vilber PTC-65 platform lift is the ideal solution which guarantees that persons who get about in wheelchairs have accessibility to any type of building with staircases featuring curves or changes in slope.

Download manual in PDF format

More information

In the case of all the platform lift and stairlift models described above, no archictectural intervention of any kind is required. Furthermore, the PETC-65 plataform stairlift guarantees significant savings in energy, thanks to the machine’s ability to take advantage of stops in order to recharge its batteries.

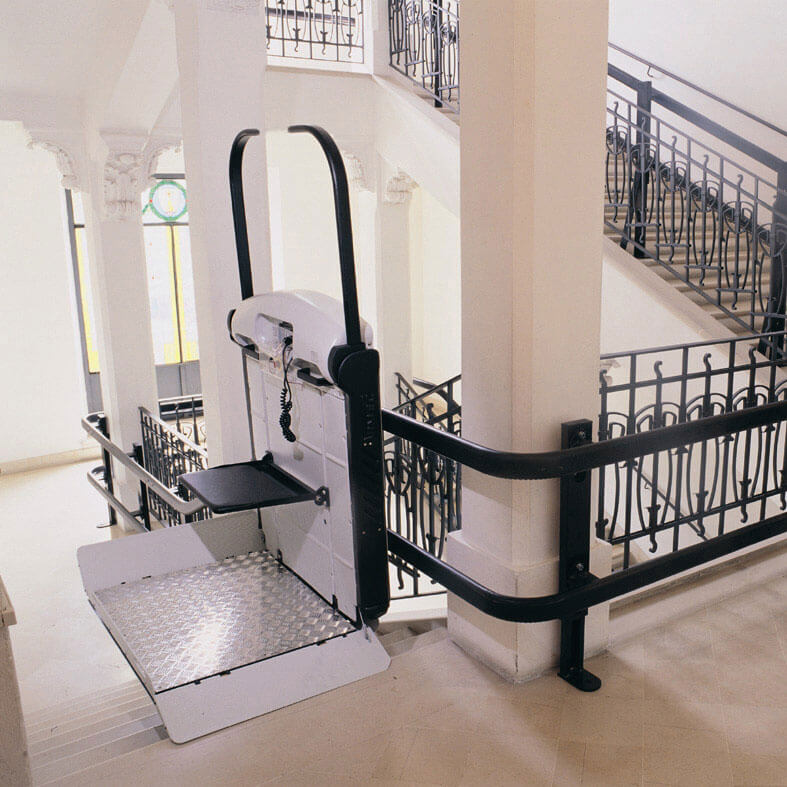

This platform lift is recommended for both indoor and outdoor installation. It comes equipped with radio control, personal safety systems and protective bars which reduce the space occupied when the platform is stopped.

Equipment

STANDARD EQUIPMENT PETC-65 PLATFORM LIFT

Controls protected against accidental use and activated only when the operator is present
Removable key
Emergency stop
Manual emergency manoeuvre
Progressive mechanical shock-absorber
Speed limiter
Automatic retention belts
Handles
Electric safety pads which function as stops along the path
Devices to avoid shocks, shearing and crushing

Optional equipment

OPTIONAL EQUIPMENT PETC-65 PLATFORM LIFT

Protective tarp
Automated folding of platform
Special platform dimensions
Acoustic movement signal
Illuminated movement indicator
Screw seat
Intermediate stops between one floor and the next
Retracting bars gathered up inside the body of the machine itself (except for platform 1250×800)
Radio remote controls
Remote column control

Technical document

Technical document PETC-65 Platform stairlift

CHARACTERISTICS	UNITS	STANDARD	LARGE	X-LARGE
Minimum width curved stairs	mm	1130	1250	1320
Range of acceptable slopes	degrees	De 0 a 50º	De 0 a 50º	De 0 a 50º
Minimum space occupied by guide	mm	160	160	160
Minimum space occupied by platform when closed	mm	430	430	430
Dimensions platform	mm	830×700	1050×770	1250×800
Payload capacity up to 45º	Kg	230	230	230
Payload capacity over 45º	Kg	200	200	200
Speed	m/min.	8	8	8
Power supply	volts	230	230	230
Consumption	Kw	1	1	1

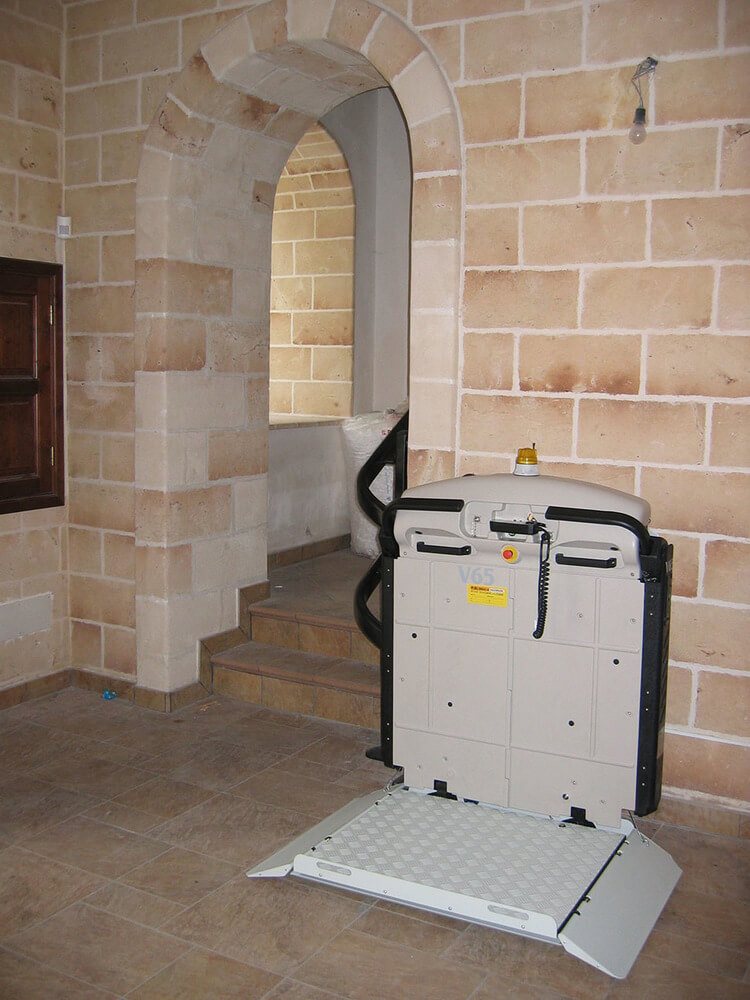

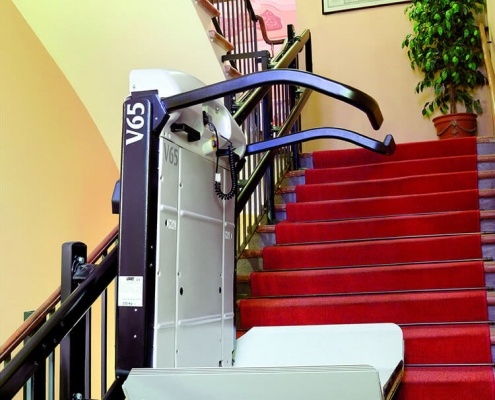

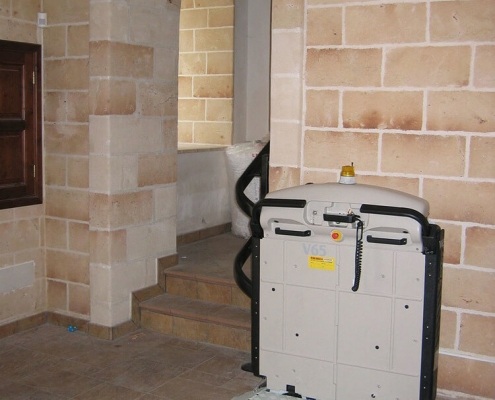

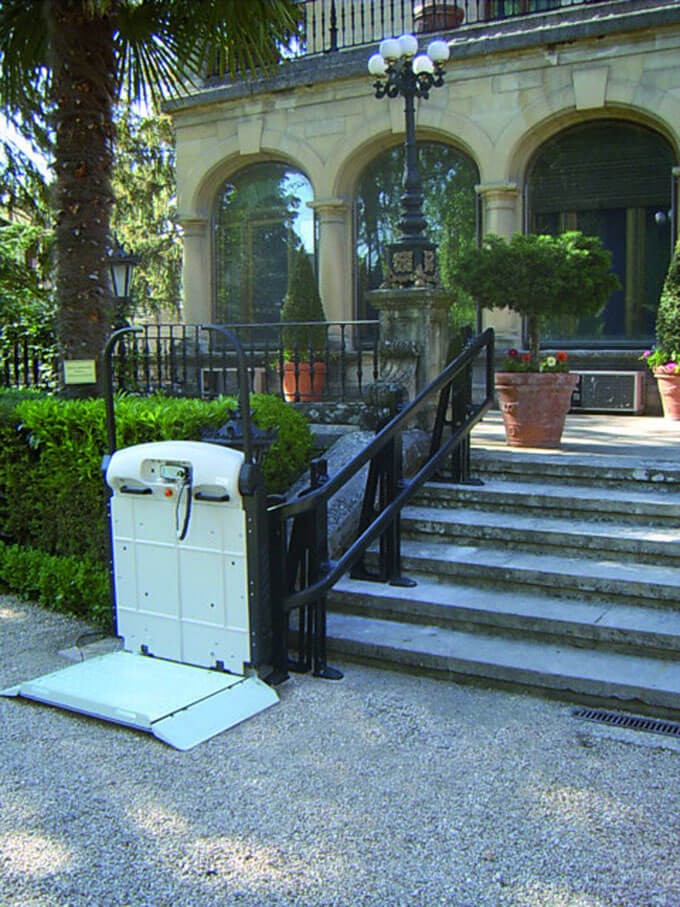

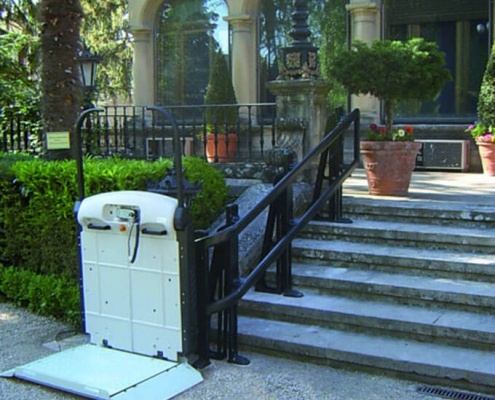

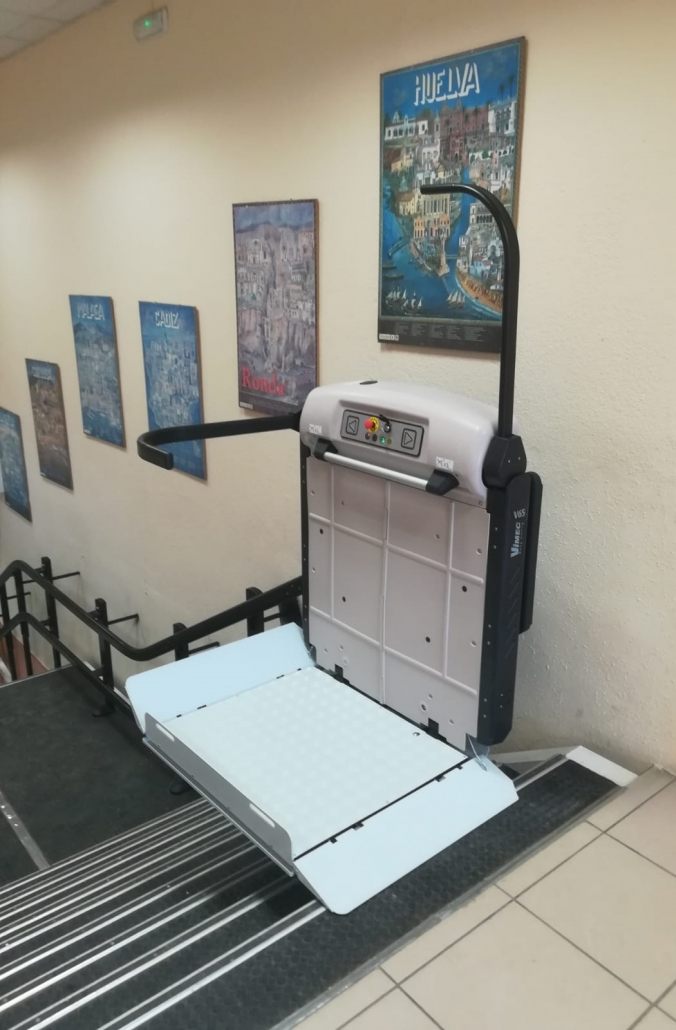

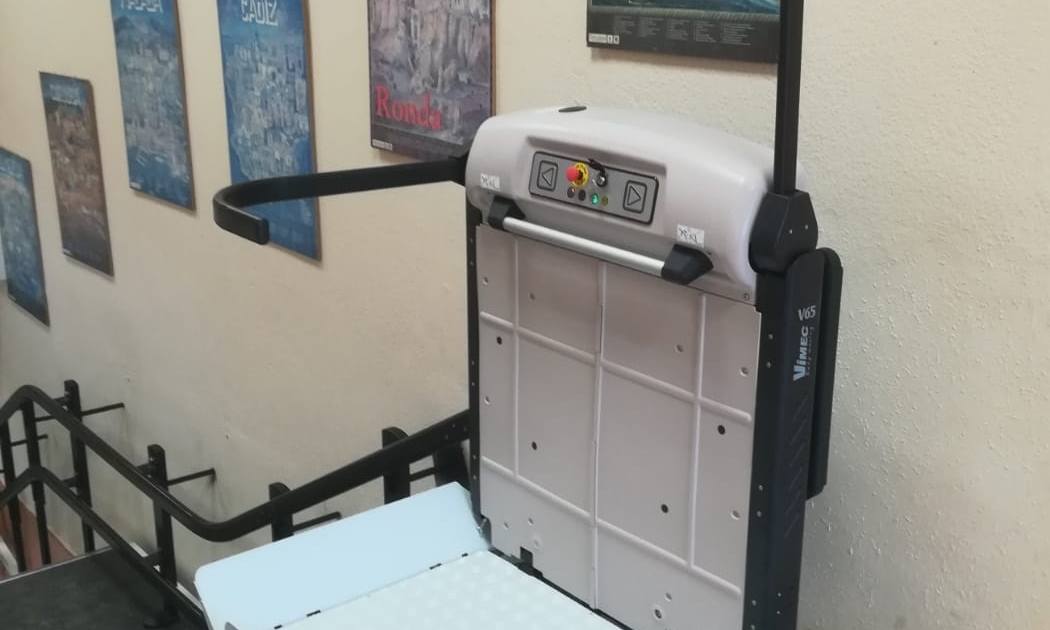

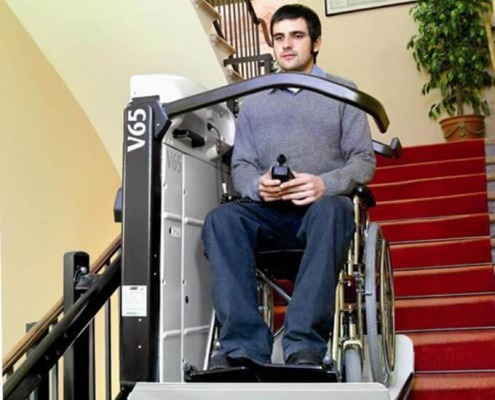

Image gallery
